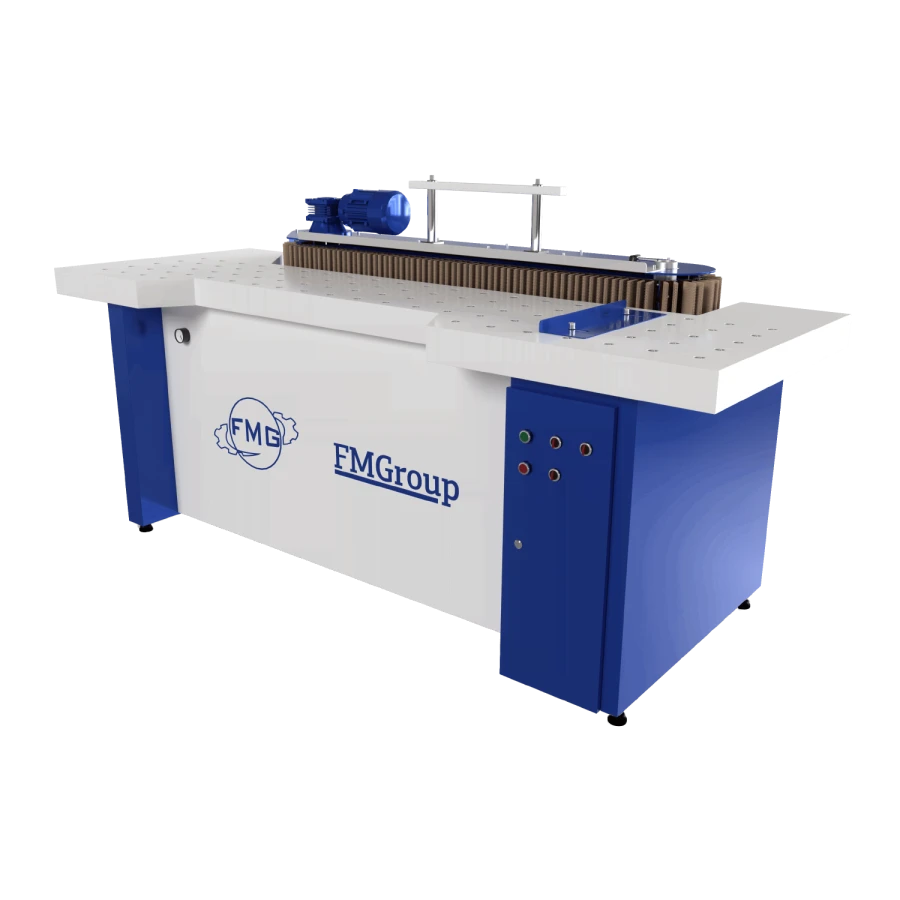

Edge Grinding Machine FMGroup STSH-12-2 for Efficient Surface Finishing

Woodworking CNC & Grinding Machines

Manufacturer: EF EM GROUP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Face Grinding Machine "FMGroup" STSH-12-2SANDING: intermediate sanding finishing sanding of lacquer coatings primary sanding of MDF processing of edges of front panels. Brush sanding with full simulation of "hand" sanding. FEATURES OF CONSTRUCTION AND COMPLETION: The end-grinding machine is equipped with a brush sanding belt for finishing and intermediate sanding of straight edges of various parts. Machine composition: Electroswelded machine bed Work table on the air cushion to protect the surface of the workpiece from scratches, works from an air compressor. Dimensions of the working table 850x2200 mm Height from the floor to the table 900 mm. Two sanding belts 100 mm high each with brush sanding segments 136+136 pcs.

Specifications

Type of product according to PP RF 616

Specialized equipment for woodworking

Belt speed (infinitely variable)

1045 m/min

Stroke of the grinding unit during grinding

30 mm

Stroke frequency of the grinding unit max.

30 double strokes/minute

Grinding belt width

100 mm

Grinding belt length

2200 mm

Air pressure

6-8 kgf/cm2

Air consumption max

80 l/min

Frequency inverter

Got it

Aspiration connection (diameter)

80 mm

Power supply voltage

1f, 220V

Installed capacity

0,8 kW

Overall dimensions (L*W*H)

2200x970x1330 mm

Weight

280 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
