Explosive Substance Detector "SHELFTI" for Automated Detection of Explosive Traces

Explosives detector "SHELF-TI" (hereinafter referred to as "SHELF-TI") according to LKVSH.12.361.0000.00 TU, is designed for automated detection of traces (microparticles) of explosives (hereinafter referred to as "explosives") on human fingers. The field of application of the Detector is detection of persons with traces of explosives on their fingers at checkpoints in conditions of mass passage of people. The detector can be used both independently and as part of an access control system (hereinafter - ACS), providing together with it automated access control through checkpoints to controlled areas of the protected facility.

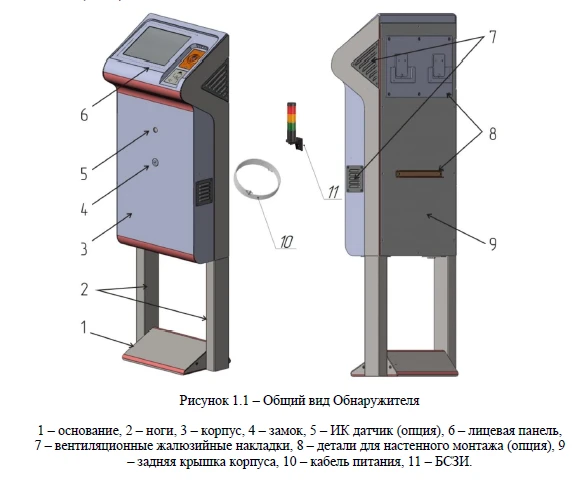

The detector consists of a housing, a stand for mounting to the floor, a set of parts for wall mounting, and a remote light and sound indication unit (hereinafter referred to as LASI). The detector housing contains the sampling device (hereinafter referred to as "SDD"), explosive vapour detector, electronics unit (hereinafter referred to as "BE"), power converters. In the upper front part of the detector there is a ...
