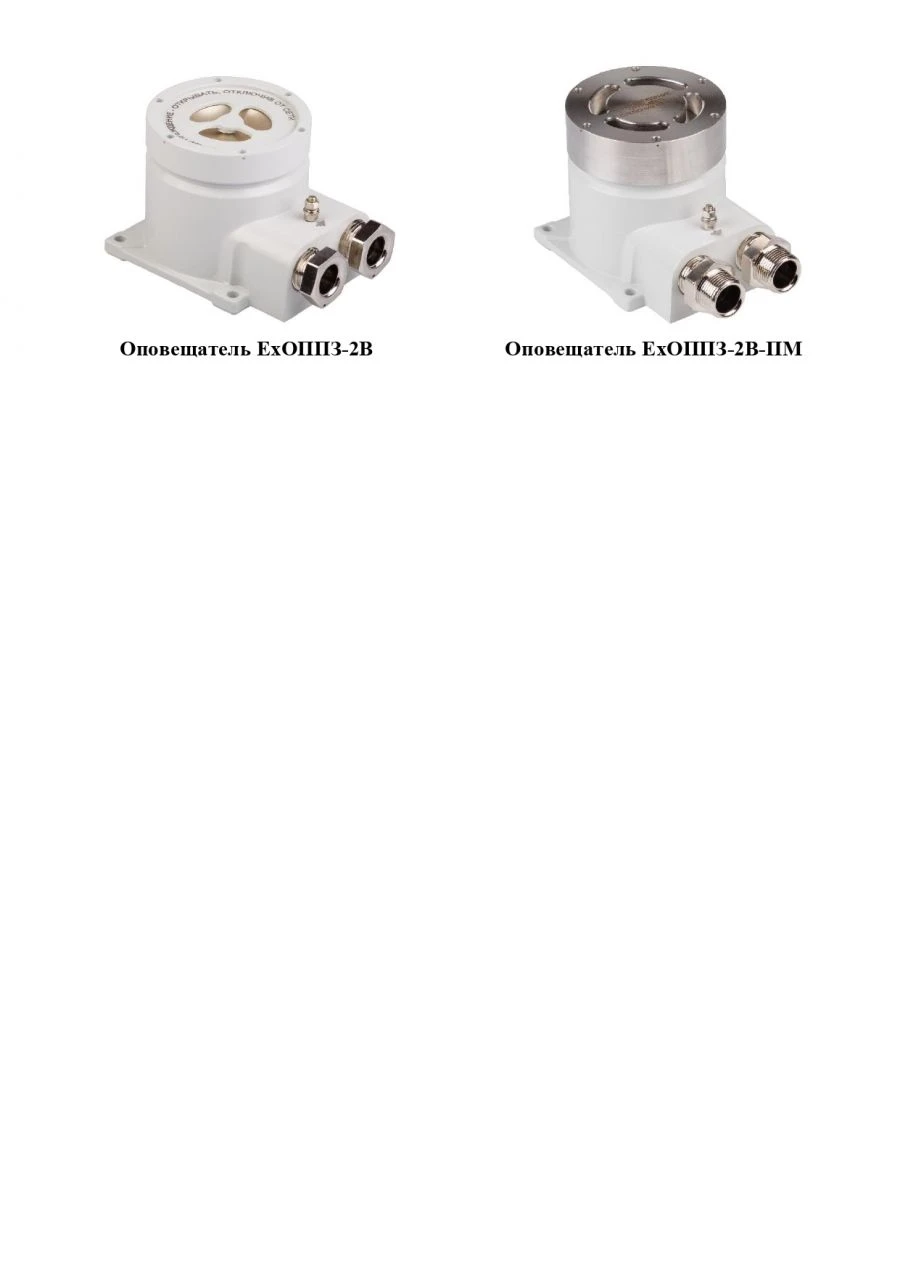

Explosion-Proof Sound Alarm System for Continuous Operation - ExOPPZ-2V Series

Available for Import

Explosion-Proof Sound Alarm System for Safety - ExOPPZ-2V Series

Fire Control Stations

Manufacturer: CJSC NPK "ETALON"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Fire alarm sounders explosion-proof are designed for continuous round-the-clock operation in standby mode (providing the possibility of sound alarm signals) in fire alarm and fire extinguishing systems when working in conjunction with reception and control devices. The sirens with index MR are produced under the technical supervision of the Russian Maritime Register of Shipping. Operation modes of the sirens: start of the sound signal when the power supply voltage is applied; standby mode (the sound signal is switched on when the external "dry" contact K is closed and the power supply voltage is present). Construction - aluminium alloy or stainless steel, two cable entries. 8 audible signals at user's choice, start by supply voltage or external signal. Application in hazardous areas of classes 1 and 2

Specifications

Degree of protection

IP 67

Power supply voltage, sirens without index 220

10...60 V

Power supply voltage, sirens with index 220

90...264 V

Power consumption, sirens without index 220

8 W

Power consumption, sirens with index 220

Sound pressure, sirens without PM index, not less , dB

Sound pressure, sirens with PM index, not less , dB

105

Operating temperature, sirens without index P

-60...70 °C

Operating temperature, sirens with index P

-60...70 °C

Explosion protection marking

1Ex dc IIIC T6 Gb

Frequency of sound signal

1000...3000

Number of cable glands (threaded plugs)

2 pcs

Diameter of cables to be inserted

14...18 mm

Cross-section of wires to be connected to the terminals on the board

0.125...2.5 mm²

Permissible time of continuous operation in the mode of sound signal, not more than

180

Seismic resistance

9 MSK-64.

Weight, not more

3 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
