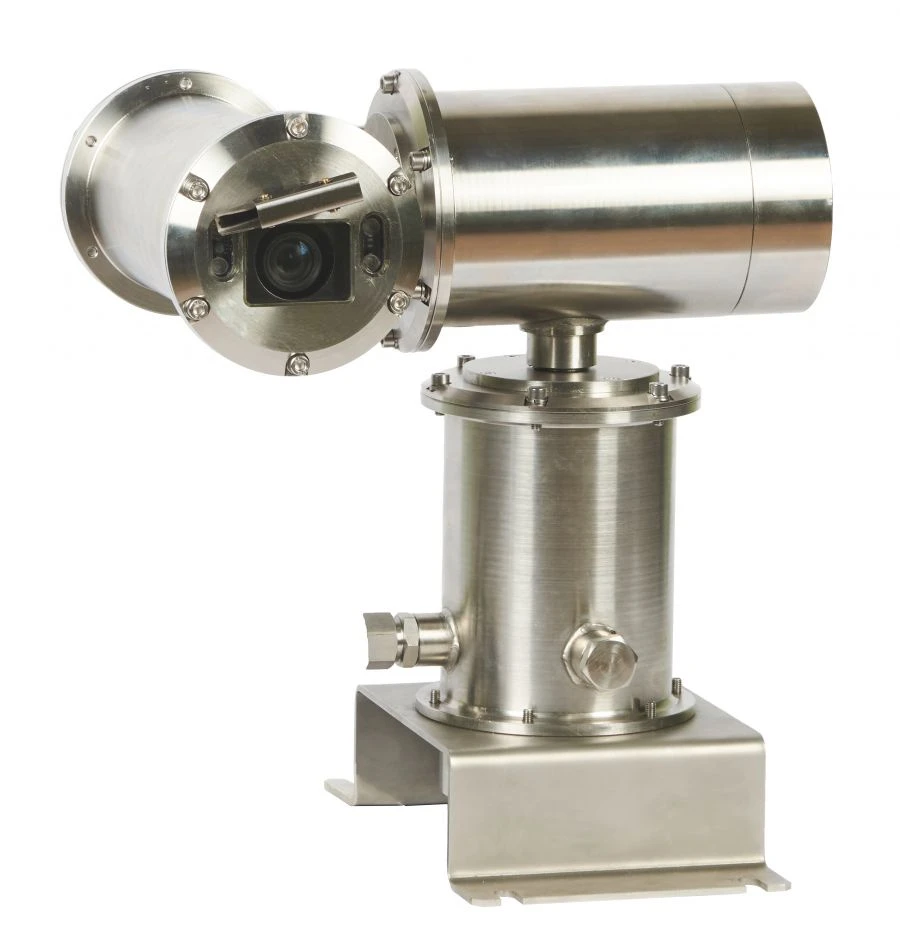

Explosion-Proof PTZ Camera with Wiper ZoneX-PTZ-Exd-M-SW-220 VAC

Available for Import

Explosion-Proof PTZ Camera with Wiper for Remote Surveillance in Hazardous Areas

Television Video Cameras

Manufacturer: ZONEX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Video camera on rotating platform Zonex-PTZ-M-PoE IP/AHD series Zonex-PTZ-Exd-M-SW-PoE rotating platform explosion-protected video camera IP/AHD series Zonex-PTZ-Exd-M-SW-WW-PoE rotating platform explosion-protected video camera IP/AHD series Video camera on rotating platform Zonex-PTZ-M-SW-24 VDC/VAC series IP/AHD Video camera on rotating platform Zonex-PTZ-M-24 VDC/VAC IP/AHD series

Video camera on rotating platform Zonex-PTZ-M-SW-PoE series IP/AHD Zonex-PTZ-Exd-N-PoE rotating platform explosion-protected video camera IP/AHD series ZonEx-PTZ-Exd-M-SW-WW-220 VAC series IP/AHD series rotating platform explosion-proof video camera ZonEx-PTZ-Exd-N-SW-WW-220 VAC series IP/AHD series rotating platform explosion proof video camera Video camera on rotating platform Zonex-PTZ-N-SW-24 VDC/VAC IP/AHD series Video camera explosion-proof rotating platform Zonex-PTZ-Exd-M-SW-WW-48 VDC series IP/AHD Video camera on rotating platform Zonex-PTZ-N-SW-PoE series IP/AHD Zonex-PTZ-Exd-N-SW-WW-PoE rotating platform explosion-protected video camera IP/AHD series Zonex-PTZ-Exd-M-SW-24 VDC/VAC rotating platform explosion-proof video camera IP/AHD series Zonex-PTZ-Exd-M-PoE rotating platform explosion-protected video camera IP/AHD series Video camera on rotating platform Zonex-PTZ-M-SW-WW-220 VAC series IP/AHD Video camera on rotating platform Zonex-PTZ-M-SW-48 VDC series IP/AHD Video camera on rotating platform Zonex-PTZ-N-24 VDC/VAC IP/AHD series Explosion-proof video camera on rotating platform ZonEx-PTZ-Exd-M-220 VAC IP/AHD series Video camera explosion-proof rotating platform Zonex-PTZ-Exd-M-48 VDC IP/AHD series Video camera on rotating platform Zonex-PTZ-PTZ-N-48 VDC IP/AHD series Zonex-PTZ-Exd-N-SW-220 VAC rotating platform explosion-proof video camera IP/AHD series Video camera explosion-proof rotating platform Zonex-PTZ-Exd-N-SW-PoE series IP/AHD Video camera explosion-proof rotating platform Zonex-PTZ-Exd-N-48 VDC IP/AHD series Video camera explosion-proof rotating platform Zonex-PTZ-Exd-N-SW-48 VDC series IP/AHD Video camera on rotating platform Zonex-PTZ-N-SW-WW-24 VDC/VAC series IP/AHD Video camera on rotating platform Zonex-PTZ-N-PoE IP/AHD series Video camera explosion-proof rotating platform Zonex-PTZ-Exd-M-SW-48 VDC series IP/AHD Video camera on rotating platform Zonex-PTZ-N-220 VAC series IP/AHD ZonEx-PTZ-Exd-N-SW-24 VDC/VAC series IP/AHD rotating platform explosion-proof video camera Video camera Zonex-PTZ-N-SW-WW-PoE rotating platform IP/AHD series Video camera on rotating platform Zonex-PTZ-M-SW-WW-24 VDC/VAC series IP/AHD Video camera explosion-proof rotating platform Zonex-PTZ-Exd-M-SW-WW-24 VDC/VAC IP/AHD series Video camera on rotating platform Zonex-PTZ-M-48 VDC IP/AHD series Video camera on rotating platform Zonex-PTZ-M-SW-WW-PoE series IP/AHD Video camera explosion-proof rotating platform Zonex-PTZ-Exd-N-24 VDC/VAC series IP/AHD Video camera on rotating platform ZonEx-PTZ-M-220 VAC series IP/AHD Video camera explosion-proof rotating platform Zonex-PTZ-Exd-M-24 VDC/VAC IP/AHD series Video camera on rotating platform Zonex-PTZ-M-SW-WW-48 VDC series IP/AHD Video camera on rotating platform Zonex-PTZ-N-SW-WW-48 VDC series IP/AHD Video camera explosion-proof rotating platform Zonex-PTZ-Exd-N-SW-WW-48 VDC series IP/AHD ZonEx-PTZ-Exd-N-SW-WW-24 VDC/VAC series IP/AHD rotating platform explosion-proof video camera Video camera explosion-proof rotating platform ZonEx-PTZ-Exd-H-220 VAC IP/AHD series Video camera on rotating platform Zonex-PTZ-N-SW-48 VDC series IP/AHD Video camera on rotating platform Zonex-PTZ-N-SW-WW-220 VAC series IP/AHD Video camera on rotating platform Zonex-PTZ-M-SW-220 VAC series IP/AHD Video camera on rotating platform Zonex-PTZ-N-SW-220 VAC series IP/AHD

Description

Ex-proof video camera with a wiper on a rotating platform is designed for round-the-clock remote security and technological video surveillance in hazardous areas with the ability to change the angle in horizontal and vertical planes. Explosion protection marking RV Ex db I Mb / 1Ex db IIC T6 Gb / Ex tb IIIC T85C Db allows the camera to be used in hazardous areas of classes "1", "2", "21" and "22", closed rooms and open objects. The environment may contain explosive mixtures of gases and vapours with air of categories I, IIA, IIB and IIC. The camera is optionally equipped with a sun visor and cable glands. The camera is recommended for use at chemical and petrochemical facilities, in chemically aggressive alkaline and acidic environments, on oil and gas production platforms in seawater and salt fog.

Specifications

Vertical rotation angle

plus 90° to minus 90°

Horizontal rotation angle

Unlimited

Video camera control protocols

Pelco-P, Pelco-D

Viewing areas

up to 4 viewing zones

Main stream

From 1080P (1920x1080) at 30fps 60Hz to 8MP (3840x2160) at 30fps 60Hz

Video compression

H.265,H.264, H.265+,H.264+

Lens

2.7-13.5 mm motorized with autofocus

Number of effective pixels

1920 (D) x 1080(H) 2 MP to 3840 (D) x 2160 (H) 8 MP

Overall size

L:383 x W:383 x H:400 mm

Weight

25 kg

Housing material

Galvanized steel

Temperature range

-70°C ÷ +55°C (with heating) / -45°C ÷ +55°C (without heating)

Power supply voltage

220 VAC

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
