Explosion-Proof Magnetic Contact Security Sensors Ex IO 102 for Monitoring Structures and Mechanisms

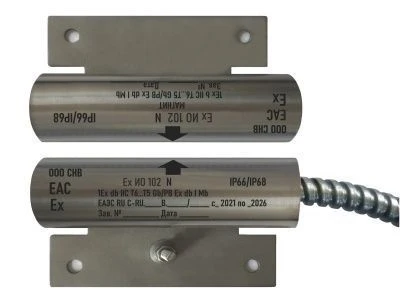

Safety detectors point magnetic contact explosion-proof Ex IO 102 are designed to monitor the position of parts of structures and mechanisms, structural elements of buildings and structures for opening or displacement, made of magnetic (steel and alloys) or non-magnetic materials (wood, plastic, aluminium) with the subsequent issuance of alarm notification to the receiving and control device or terminal object device of the system of transmission of notifications. The degree of protection of the shell is IP66/IP68. The reed switch unit and magnet unit are placed in cylindrical metal housings made of aluminium alloy or stainless steel.

The reed switch unit is equipped with a cable gland located at the end of the housing or with an attached cable. Explosion protection marking 1Ex db IIC T6...T5 Gb / RV Ex db I Mb or 1Ex db IIC T6...T5 Gb/1Ex db IIC T6...T5 Gb X / RV Ex db I Mb X or 1Ex db IIC T6...T5 Gb X.
