Available for Import

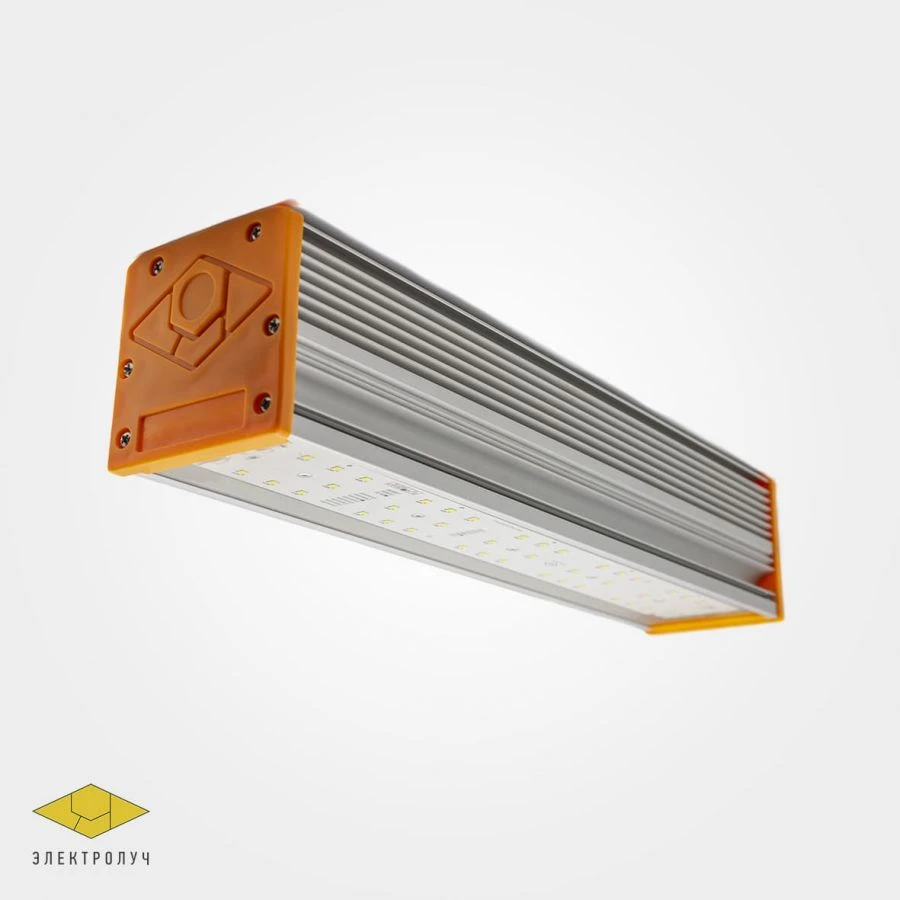

Explosion-proof LED luminaire EL-LINE-EX series

Advanced LED Lighting

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Luminaires are designed for outdoor and indoor lighting of industrial, production facilities, open areas and other areas where the presence of explosive atmospheres is possible. The power of the product is 10-120 W. The luminaires are designed for operation in networks with nominal voltage of alternating current - 230V. The luminaire has several types of mounting (installation): cable suspension, swivelling bracket, mounting on a bar, mounting on a support, pipe mounting. The luminaire has several types of diffusers: polycarbonate transparent, flat tempered glass. The design of the luminaire allows to realise both dead-end and transit cable installation. The luminaires can be operated in the temperature range from - 50°? to +55°?. Climatic execution and category of placement according to GOST 15150: UHL1.Degree of protection IP: 66, 67

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Power consumption 10...120 W

Type of supply current VAC

Protection class against electric current I class for supply voltage 230V AC according to GOST 12.2.007.0

Luminous flux 2600...13700 lm

Correlated color temperature 5000 K

Protective corner 15

Housing material Aluminium alloy 6060 DIN 573, delivery condition T6, anodised

Mounting method Cable hanger, swivel bracket, bar mount, support mount, tube mounting

Type of diffuser Polycarbonate clear, flat tempered glass

Climatic version UHL1

Degree of protection IP IP66, IP67

Length 410...1170 mm

Width 85...140 mm

Height 120...200 mm

Net weight 4.3...11.5 kg

Gross weight 4.4...11.7 kg

Input voltage 230 V

Operating temperature conditions -50...55 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
