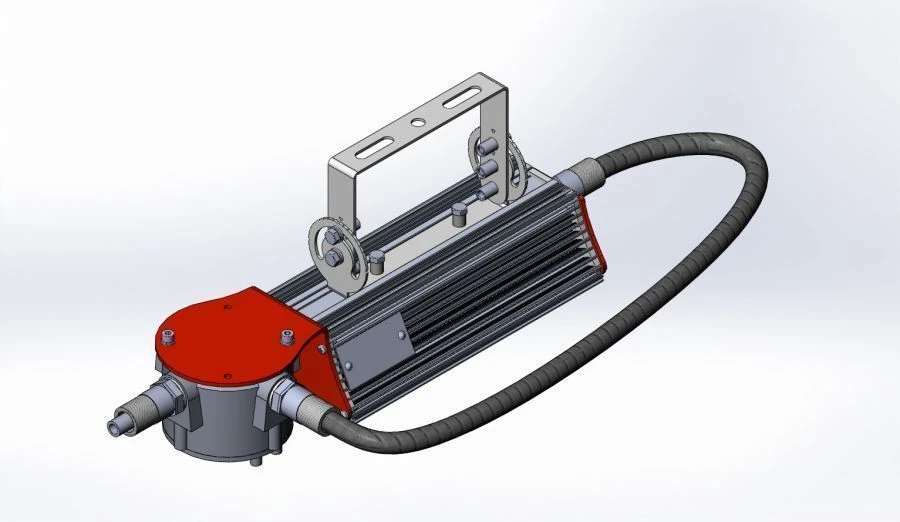

Explosion-Proof LED Light with Terminal Box Sakhalin 16.5420.29 Ex T5

Available for Import

Explosion-Proof LED Light with Terminal Box for Hazardous Environments

LED Spotlights and Luminaires

Manufacturer: Durey OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

LED explosion-proof luminaire with terminal box Sakhalin 48.16270.87 Ex T5, swivel mount LED explosion-proof luminaire with terminal box Sakhalin 32.10850.58 Ex T5, swivel mount LED explosion-proof luminaire with terminal box Sakhalin 24.8230.44 Ex T5, swivel mount

Description

Designed for stationary installation for illumination of explosive industrial premises and outdoor installations.

Field of application: <ul> <li>- explosive areas of classes 1 or 2 when a gas mixture is likely to be present, categories IIA, IIB, IIC;</li> <li>hazardous areas of classes 21 and 22 with probable presence of combustible dust, category IIIC.</li> </ul> Group II electrical equipment is used for gas environments, Group III for dust environments (except mines). Degree of protection IP67

Specifications

Protection class against electric current

Power factor

0.97

Power consumption, W

29 W

IK code

Type of supply current

Variable

Rated supply voltage

230 V

Type of luminaire

Stationary

Pulsation factor

1 %

Luminous flux

5420 lm

Color rendering index (Ra)

Operating temperature range

40...45 °C

Light distribution class

n - direct light; CCC type: E, G, W, K, U

Height

65 mm

Width

118 mm

Length

297 mm

Diffuser material

transparent polycarbonate

Lower operating temperature value

45 °C

Upper operating temperature value

40 °C

Color temperature

5000 K

Overall brightness, cd/m2 not more than

104583

Diameter of the light spot in the plane of objects

10380 mm

Model

sakhalin t5 with terminal box (with kk)

Housing material

anodized aluminum profile

Climatic version

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
