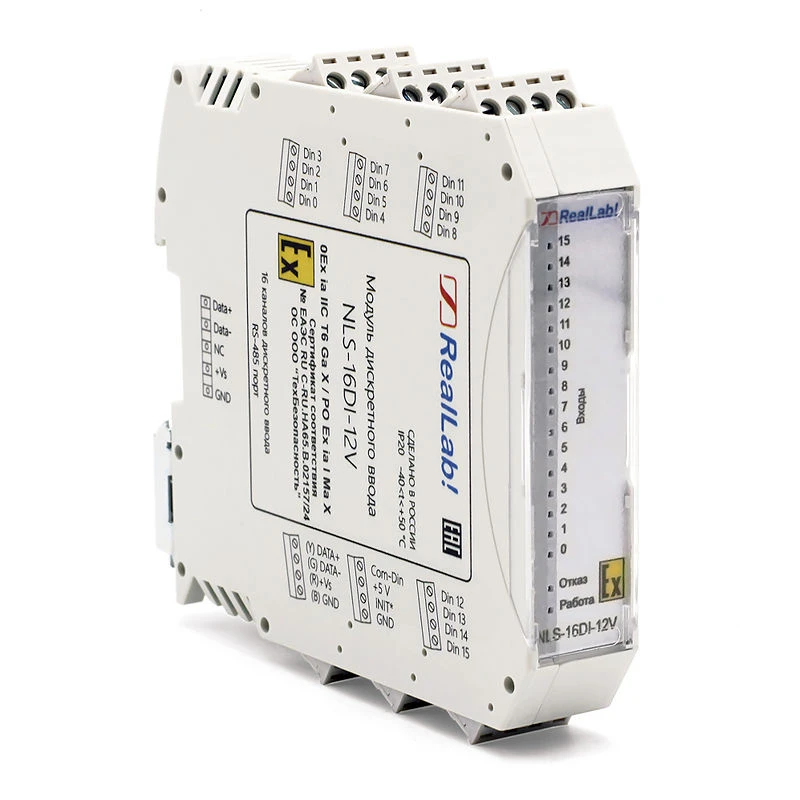

Explosion-Proof Discrete Input Module NLS-16DI-12V for Safe Control in Hazardous Areas

Digital Signal Converters

Manufacturer: NIL AP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Purpose: discrete input module Explosion protection marking: 0Ex ia IIC T6 Ga X or PO Ex ia I Ma X Discrete input: 16 channels of discrete input with group isolation Overload protection: protection against overvoltage and current overload on input, output, interface, static electricity, etc. Galvanic isolation: 2500 V Logic zero level: no more than 2 V Logic one level: 3...12 V Temperature: temperature range from -40 to +50 C Connection interface: RS-485, Modbus RTU protocol and DCON Supply voltage: from 10 V to 13 V Power consumption: 0.4 W OKPD2 code: 26.51.43.117 Dimensions (HxShxG): 109x22.5x113 mm Warranty: 18 months.

Specifications

Power consumption

0.4 W

Operating temperature range

-40...50 °C

Dimensions (WxWxH)

109x22.5x113 mm

Nutrition

10...13 V
