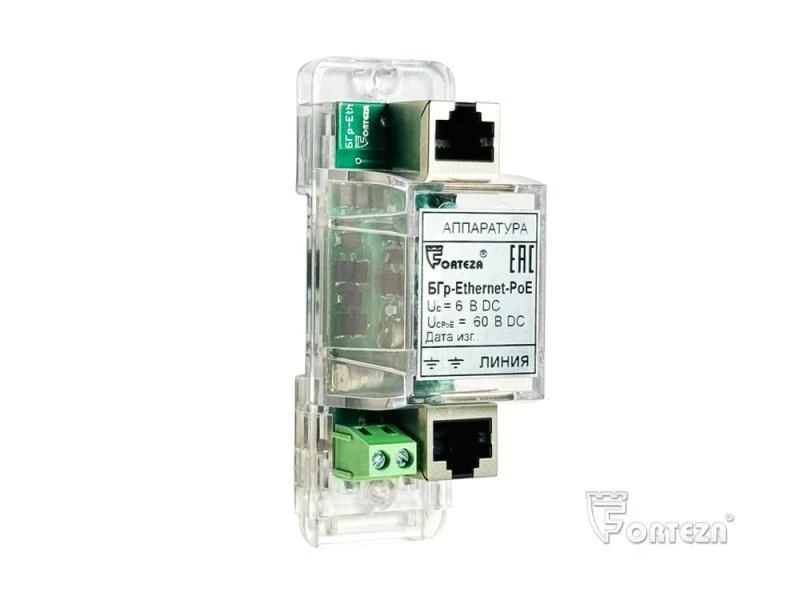

Ethernet Surge Protection Block "BGр-Ethernet-PoE" for Safeguarding 8-Wire Networks

Surge Protection Devices

Manufacturer:OKHRANNAIA TEKHNIKA LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

They are used for protection of ports of local Ethernet network from impulse overvoltages caused by lightning surges.BGr-Ethernet-PoE provides protection of 8-wire Ethernet network with PoE support, made in a plastic case for mounting on DIN-rail or flat surface.

Specifications

Dimensions

96x33x41 mm

Weight

0.1 kg

Degree of enclosure protection

IP-20

Operating current, max.

0.6 A

Number of circuits

8 pcs

Maximum continuous operating voltage for DC data lines

6 V

Bandwidth at -2 dB level, not less than

250

Maximum continuous operating voltage for PoE lines, DC

60 V

Protection voltage for data line: 15 V; for PoE lines: 90 V; relative to ground

600 V

Test pulse for data lines: 0.5 kV, PoE: 0.5 kV; relative to ground

4 kV

Operating temperature range

-55...65 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
