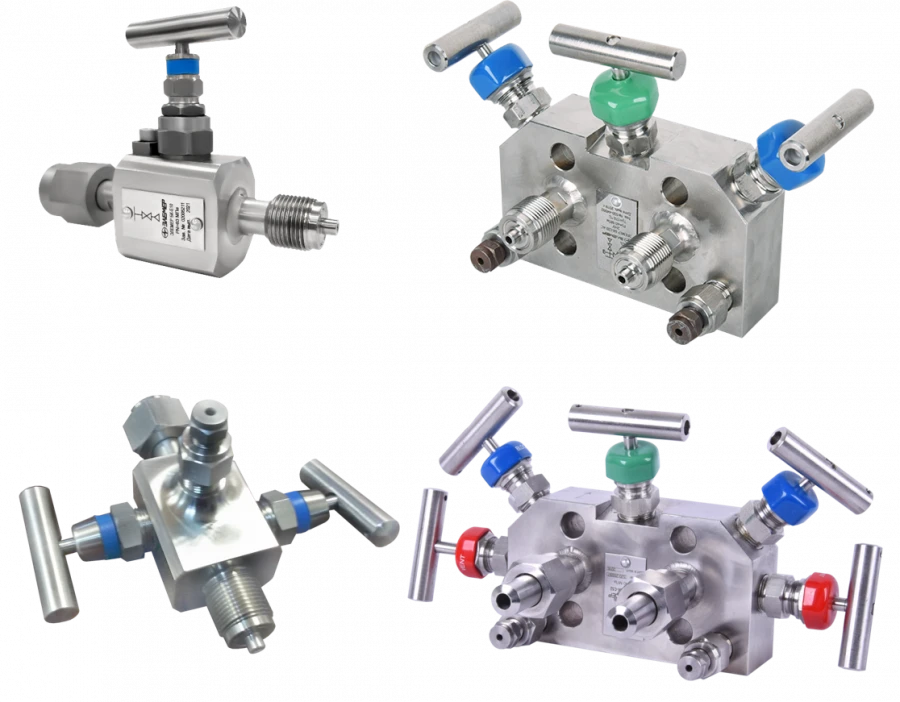

Elemer-BK Valve Blocks for Pressure Sensors - Series E, C Applications

Purpose: Valve blocks ELEMER-BK series E, C are designed for connection of pressure sensors, electronic manometers, mechanical manometers to process lines, pressure supply and release, for periodic control of the output signal setting corresponding to the zero value of the measured pressure. Design features and advantages: -Mounting from a gauge of socket or flange construction design -One or two valve blocks for connection of sensors of socket design -Three or five valve blocks for connection of sensors of flange design -Versions: general industrial, atomic, oxygen -Temperature of working medium: -60...+170°? -Pressure of working medium: 40 MPa (series C), 63 MPa (series E) -Operation during the warranty period - more than 1500 cycles
