Available for Import

Electrical explosion-proof connector ES-Ex for cables with operating voltage not more than 1000 V

Electrical Connectors & Clamps

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

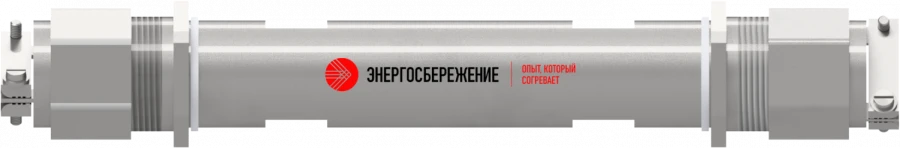

Electrical connectors ES-Ex, are designed to connect sections of the same type of heating cable of round or flat cross-section between each other, as well as the connection of round power and flat heating cables.
They are used to connect self-regulating and resistive cables of well-known foreign and domestic manufacturers. The connectors are designed for indoor and outdoor installation in general industrial and explosion hazardous areas with gas explosive atmospheres of class 1 and 2 according to GOST IEC 60079-14-2011 according to the explosion protection marking and operated in cold climate conditions.
It is allowed to use in DC circuits. The connectors replace terminal boxes on the pipeline, as installation under thermal insulation is possible.

Specifications

Class of contact connection 3

Contact connection group ?

Rated current 40...98 A

Connector type Crimp

Conductor core type Single-core, multi-core

Availability of means for stabilization of electrical resistance absent

Conductor stripping length 52 mm

Diameter of the hole in the wire contact 6...16 mm

Cross-sectional area of the conductor to be connected 1...50 mm2

Application Used for joining self-regulating and resistive cables of well-known foreign and domestic manufacturers.

Nominal voltage 250...630 V

Degree of protection IP66

Temperature during continuous operation -60...150 °C

Service life B1/B8 2100/900 MHz a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
