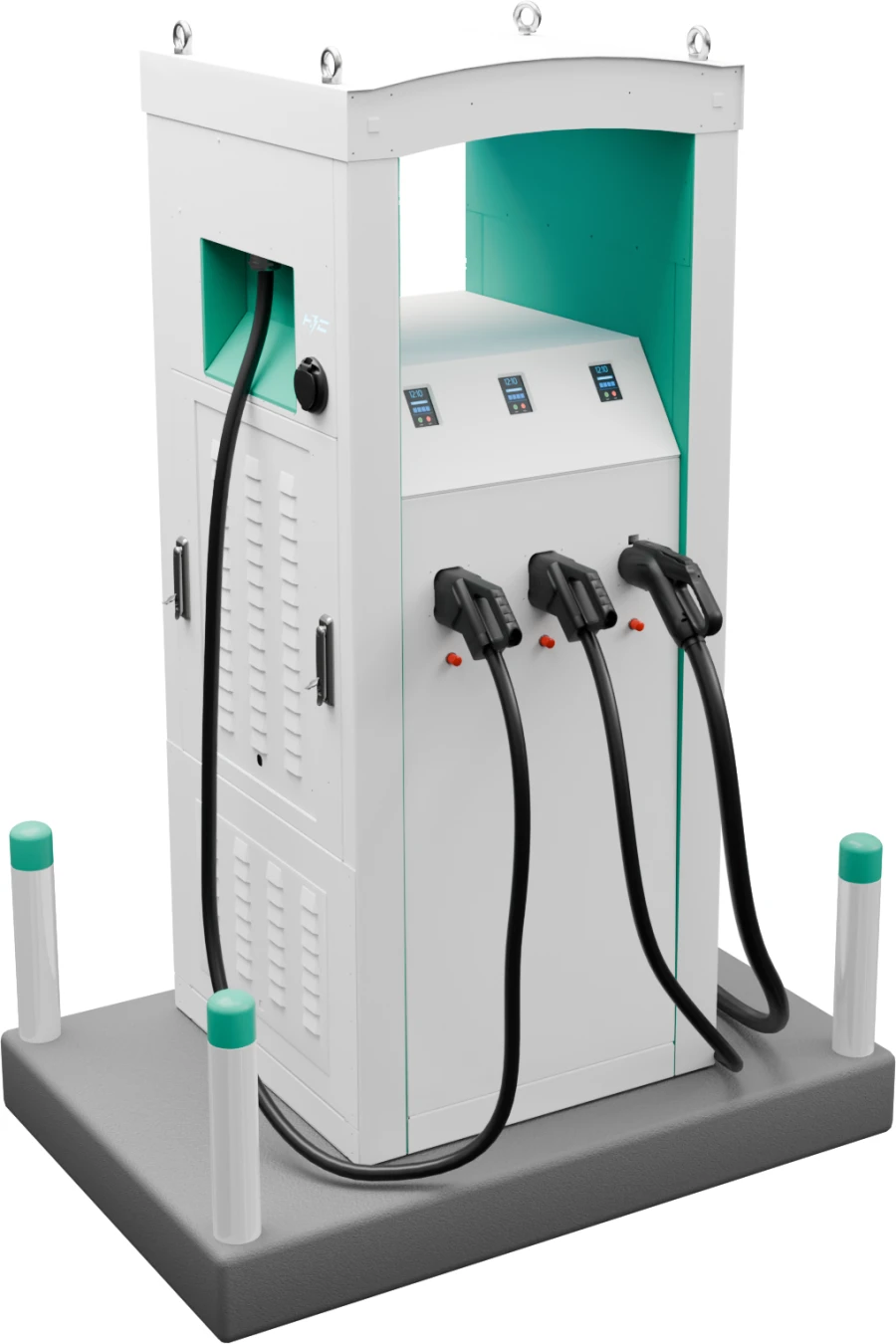

Electric Vehicle Charging Station NCS PRO Max 150 CCG for Fast Charging Solutions

The charging station for electric vehicles, model NZS PRO Max 150 is designed for charging electric vehicles and plug-in hybrids in DC mode (Mode 4) and AC mode (Mode 3) in accordance with GOST R IEC 61851-1-2013 - Type 2, ISO 15118, DIN SPEC 70121-2014 - CCS Combo 2, GB/T 27930. Can charge 4 electric vehicles (3 DC electric vehicles and 1 AC EM) at the same time. Nominal input voltage is 400V AC with 50Hz frequency.

The output power of the charging station is divided dynamically between the ports, depending on the request of the electric vehicle and the available power. DC output voltage up to 1000V, protection degree IP54. Vandal resistant housing is made of metal with polymer powder coating.

Maintenance periodicity - approximately once every 6 months. Service life - 10 years. Average operating time on failure is not less than 10000 h.

Warranty period of operation 2 years from the date of shipment.
