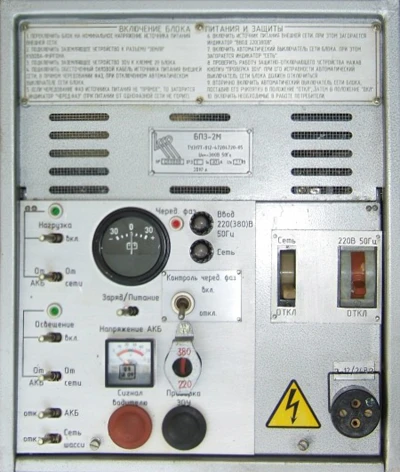

Electric Power Supply and Protection Unit BPZ-2M for Safe Circuit Management

The electric power supply and protection unit BPZ-2M VIASH.436328.001 and its modifications are designed for:
- switching of electric network current with voltage 400 V, frequency 50 Hz;
- switching of the electric network current of the van body with voltage 12 V or 24 V;
- power supply of electric consumers of the van body with direct current of 12 V or 24 V;
- connection of portable lighting lamp with voltage 12 V or 24 V;
- recharging of the van body batteries in the presence of voltage at the output terminals of the units;
- protection of service personnel from electric shock by leakage current;
- protection of electric circuits against overloads and short-circuit currents;
- activation of signalling between the van body and the driver's cabin;
- has a separate protected 230 V, 50 Hz circuit output;
- provides monitoring of the battery charge level;
- provides control of correct phase rotation;
- has a 230 V, 50 Hz socket.
