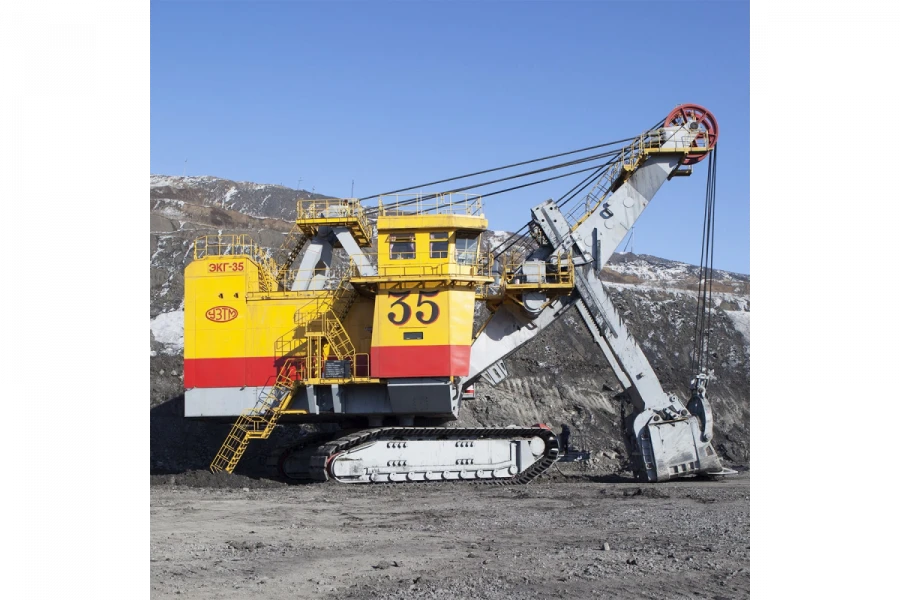

EKG-35M Crawler Excavator for Efficient Earth Moving Operations

KEY CHARACTERISTICS: Type of pressure mechanism is rack and pinion Useful weight load, t63,5 Nominal bucket capacity, (at a bulk density of 1.8 t/m3 SAE 2:1)35 Cycle time, sec28 Optimal load capacity of dump trucks, tonnes220-320 Working weight, t1250 Designed to work in difficult mining, geological and climatic conditions, excellently proved itself in the development of heavy rocky soils in round-the-clock mode. Design features of ECG-35M: The rack and pinion head mechanism and double-beam handle provide efficient work in the face, high productivity, good planning of the working site; Multi-support caterpillar mechanism provides uniform load distribution along the track support length and smooth running; The design and calculations are based on the latest software and take into account the data on the working site. The latest software was used in the design and calculations, and operational data was taken into account; Complete AC drive "PCh-AD" is efficient digging, cost-effective, no impact on the quarry network...
