Available for Import

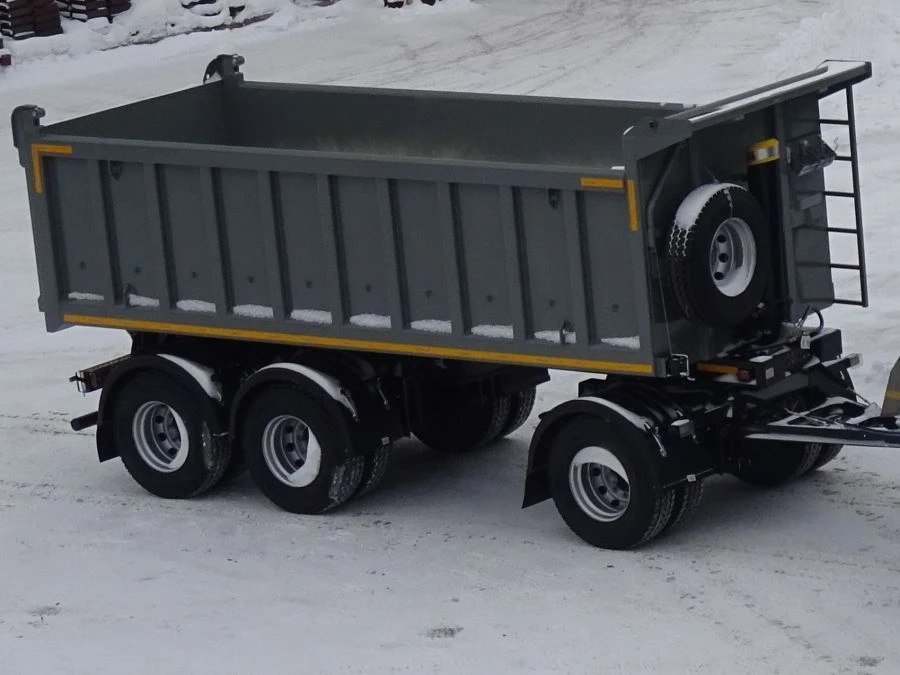

Dump Trailer for Bulk Industrial and Agricultural Cargo 852301 - Efficient Transport Solution

Heavy Duty Trailers

Manufacturer:NOVOSIBARZ OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for transporting bulk industrial and agricultural goods on roads of all categories of the general road network. Technically permissible maximum mass of the vehicle is 36000 kg. The loading space is a metal tipper platform tipping backwards by means of a hydraulic mechanism.

The towing tractor must be equipped with a hydraulic system including: hydraulic pump, distributor, safety valve, oil filter, hydraulic outlets for connecting the trailer hydraulic system and oil tank. Drawbar with coupling loop of 50 mm diameter or 57.5 mm diameter. 12 tonne axles manufactured by Plant Ltd.

Tyres 11 R22.5; 315/80 R22.5 manufactured by JSC "Cordiant"/ LLC "Nizhnekamsk Tyre Plant CMK". Wheel discs manufactured by OOO "AccuRide Wheels Russia" or PJSC "ChKPZ". Receiver manufactured by OOO TD "AUTOTECHNOLOGIA".

Lighting equipment manufactured by OOO "Atlanta".

Specifications

Type of trailer

Dump truck

Maximum height

3200 mm

Width

2550 mm

Maximum length

8050 mm

Axle load capacity

10...12 t

Base machine type

truck

Rear track

1904 mm

Front track

1904 mm

Base

2670+1360

Technically permissible maximum weight of the vehicle

30000...36000 kg

Body volume

Reliability parameters

Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond

Warranty period

B1/B8 2100/900 MHz

Scope of application

Designed for transporting bulk industrial and agricultural cargoes on roads of all categories of the general road network. Designed for operation with tractor-trailers allowing towing of trailers with GVW up to 36000 kg.

Ergonomic parameters

Paintwork applied to the exterior surfaces of tipper trailers shall be allowed to be painted or repainted with natural drying paints; the forces required to lift the spare wheel shall not exceed 500 N (50 kgf). When using

Climatic version

UHL

Vehicle kerb weight

8000 kg

Number of axles

3 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
