Available for Import

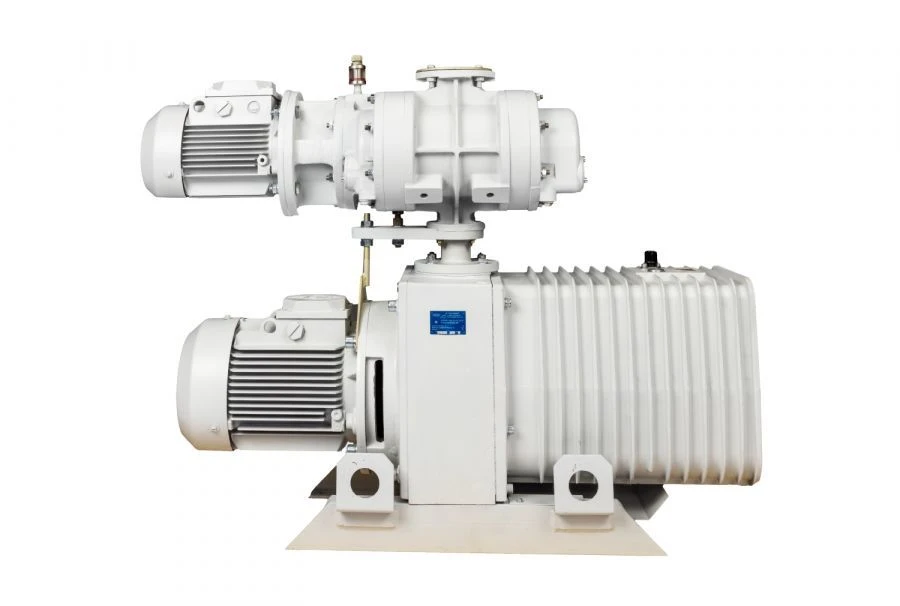

Dual Rotor Vacuum Unit AVD-50/16 for Efficient Air Extraction from Sealed Vessels

Specialised Vacuum Pumps

Manufacturer: VACUUMASH OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Dvuhrotor vacuum unit AVD-50/16 is designed for pumping from hermetic vessels with pressure of more than 106,7 kPa (800 mm Hg.) air, non-aggressive to the working fluid and materials of construction fire-explosion safe and non-toxic gases, vapours and vapour-gas mixtures, cleaned from dripping moisture and mechanical contaminants, with oxygen content not more than in air (21% by volume) under normal conditions, from atmospheric pressure to the maximum residual pressure. Also the twin-rotor vacuum unit AVD-50/16 can be used as a pre-deflation unit for high-vacuum pumps. Type of climatic execution UHL4, the unit is not intended for operation in fire-explosive production.

Specifications

Weight, kg, not more

One link up to 16GB 64-bit DDR4-2400 MHz with ECC support; 16GB (for CPC1309-01); 8GB (for CPC1309-02) kg

Overall dimensions (h/w/h), mm, not more

918/380/700 mm

Nominal bore, mm, at outlet

25 mm

Nominal bore, mm, at inlet

63 mm

Unit cooling

Air

Installed power of electric motors of the unit, kW, not more

3.3 kW

Power consumption at working pressure,kW, not more

1.5 kW

Residual pressure limit, Pa, not more: partial pressure in air

6,6?10 -3

Ultimate residual pressure, Pa, not more: including working fluid vapor (full)

1,3?10 -1

Operating speed at working pressure 26.6 Pa, m3/h

180 (+/-30)
