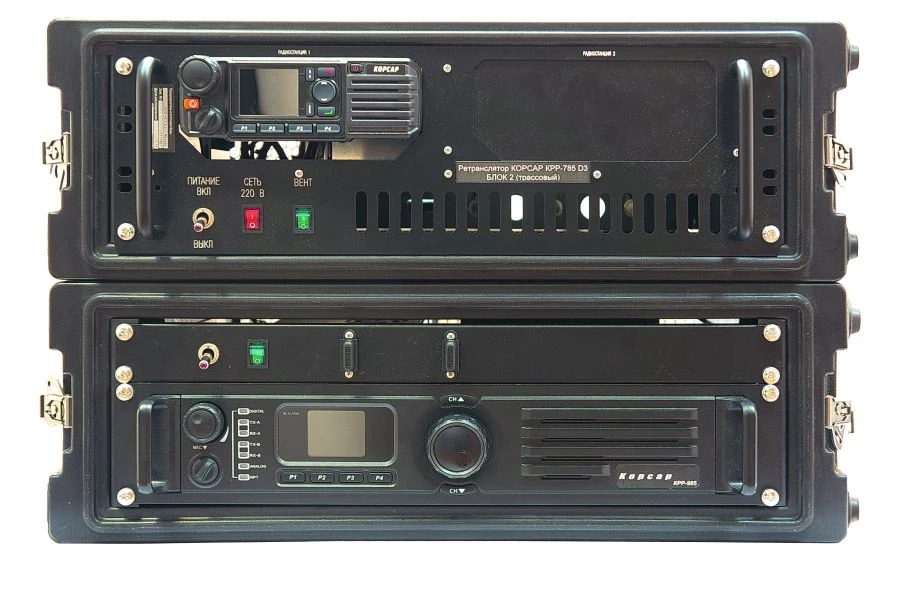

Dual-band Repeater KORSAR KRR-785 D3 (400 - 470 MHz)

Available for Import

Dual-band Repeater KORSAR KRR-785 D3 for Reliable Communication (400 - 470 MHz)

Radio Communication Devices

Manufacturer: A.T.K. LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Repeater "KORSAR KRR-785 D3" (146 - 174 MHz)

Description

Two-band repeater "KORSAR KRR-785 D3" (400 - 470 MHz) is designed to work as a terminal zone-trace repeater in the system of land mobile radio communication network, consisting of several repeaters, forming a connected system for broadcasting digital radio signal over significant distances, or to ensure coverage of a large area. The repeater operates in accordance with the digital standard ETSI TS 102 361 (DMR) in land mobile radio networks, including in radio communication systems using digital masking of transmitted information, implemented in KORSAR radios with changeable keys in accordance with GOST R 34.12-2015, GOST R 34.13-2015. The operating frequency range of the zone repeater unit is UHF, and that of the trace repeater unit is VHF. Depending on the delivery set, the repeater can be used as a stationary or portable.

Specifications

Maximum value of the operating radio frequency range

146...174

Maximum value of the operating temperature range

55 °C

Minimum value of the operating temperature range

-25 °C

Number of channels

Frequency grid step

Maximum power output

40 W

Protection class

Antenna with installation kit and cable included

Availability of power supply unit from 220 V mains, built-in

Armoured glass

Built-in remote controller via Ethernet

Communication modes

Digital

Average MTBF

6500

Digital Standard

DMR

Equipment

Repeater zone unit, repeater trace unit, 220 V power supply cable - 2 pcs., 12 V external power supply cable - 2 pcs., RE, FO, individual packing - 2 pcs.

Overall dimensions

590 x 570 x 440 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
