Domination IP Video Server for 16 Cameras - Model IP-16C-4-MDR Available for Import

Domination IP Video Server for 16 Cameras - Reliable Surveillance Solution

Wearable Video Systems
Manufacturer: VIPAKS+ LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Domination IP-24C-4-MDR video server Domination IP-32C-4-MDR video server

Description

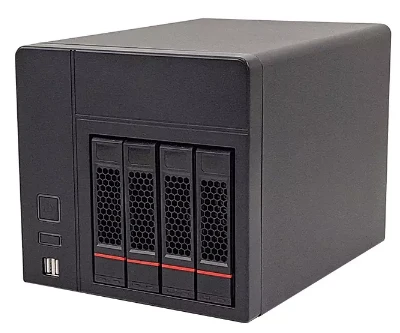

The network IP video server Domination Cube is designed to connect 16 IP-cameras (with any resolution) of any manufacturer from the list of integrated ones. The video server comes with free software for remote configuration of the video server and for viewing cameras connected to the video server. The video server has baskets for installing up to 4 HDDs (any manufacturer) with the capacity of each up to 18TB (HDDs are not included).

Incoming stream up to 800 Mbit/sec. 2 network boards. Support for audio channels of IP cameras.

Support for rotating IP cameras. Function of "hot-swap" of hard discs.On the video server installed operating system Astra Linux, protected from viruses and external influences.

Specifications

Redundant power supply unit
no
Number of HDD bays
4 pcs
Size WxHxH (mm)
250 x 320 x 260
Country of origin
Russia
Temperature mode
5...40 °C
Maximum power consumption
350 W
Power supply voltage
AC220 - 240V, 50Hz
Video output
VGA and/or HDMI
Protocol/standard for connecting to IP cameras
HTTP, RTSP, ONVIF
Built-in network card
2 x LAN 10/100/1000 Mbps
Maximum incoming flow Mbps
800
Supported HDD capacity
1...18
Resolution per channel pixels
No restrictions
Archive Mirroring
Armoured glass
Recording Modes
Continuous, by motion, by schedule, manually by operator, by contact closure/opening, by signal loss (recording duration without limitation), by video analytics events, event stream recording, audio recording.
Maximum recording speed per channel
No restrictions
Motion detector
Support for built-in IP camera detectors
Operating system
OS Astra Linux Special Edition
Number of audio channels
16 pcs
Number of licenses for connecting IP cameras
16 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
