Disc Harrow BD 5.0x2PG with Roller for Effective Soil Preparation
Manufacturer:
RADOGOST-MASH LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

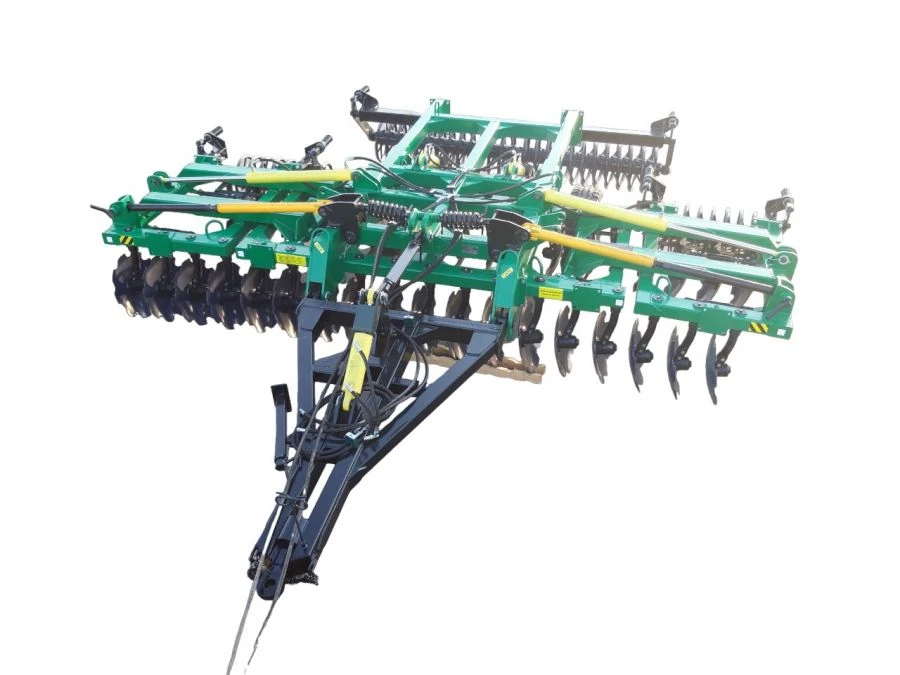

Disc harrow BD 5,0x2PG with roller
Frame made of profile pipe 150x100x6, support beams - 150x100x8 mm.
Distance between the posts 280 mm, between the rows 1350 mm
Daisy disc 560x5 mm
Lubricated stand with diameter 58,5 mm
Serviceable cutting unit, with reinforced axle and 27 mm nut. O-rings and collars prevent abrasive ingress
Supporting spiral stub roller made of 25x25 mm square
Support slat roller made of 10x50 mm strip
Bearing unit of the roller with rubber shock absorbers, which reduces the load on the bearing
Spring loaded roller support
Unique in Russia system of wings clamping (copying the relief of the soil)
Frame made of profile pipe 150x100x6, support beams - 150x100x8 mm.
Distance between the posts 280 mm, between the rows 1350 mm
Daisy disc 560x5 mm
Lubricated stand with diameter 58,5 mm
Serviceable cutting unit, with reinforced axle and 27 mm nut. O-rings and collars prevent abrasive ingress
Supporting spiral stub roller made of 25x25 mm square
Support slat roller made of 10x50 mm strip
Bearing unit of the roller with rubber shock absorbers, which reduces the load on the bearing
Spring loaded roller support
Unique in Russia system of wings clamping (copying the relief of the soil)
Specifications
Type of product according to PP RF 616
Disc harrows
Distance between rows
1350 mm
Weight
3820 kg
Number of implement rows
2 pcs
Material of working elements
Metal, 65G steel
Material of frame structures
Metal, steel 09G2S, st.3
Harrow type
Disk on separate racks
Working width
5 m
Height
1200 mm
Width
5200 mm
Length
5900 mm
Operating speed
8...12
Capacity per hour
6
Number of working orans
NZ-150-14,5 pcs
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
