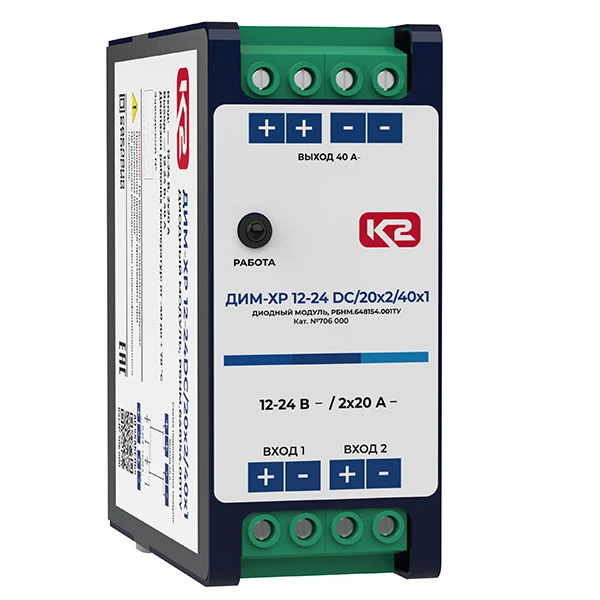

Diode Module DIM-XR 12-24DC/20x2/40x1, Cat.No.706 000

Available for Import

Diode Module DIM-XR 12-24DC/20x2/40x1 for Power Isolation

Surge Protection Devices

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Diode module DIM-XR 12-24DC/20x2/40x1, RBNM.648154.001TU is designed to decouple two redundant power supplies operating on a common load. DIM-XR 12-24DC/20x2/40x1 is used in DC circuits with nominal voltage from 12 to 24 V. The device is a diode assembly, switched on according to the scheme "or" with a common cathode, and is mounted on a DIN rail.

The redundant power supplies are isolated by the positive supply pole. The negative supply pole is directly transmitted to the device output. The input and output circuits of the module are equipped with surge protection.

On the front panel of the module there is an LED indication of the presence of output voltage.

Specifications

Operating temperature

-40...70 °C

Number of channels

2 pcs

Weight

1180 year

Housing material

stainless steel

Dimensions, WxWxH

133x57x145 mm

Total rated current

40 A

Rated diode current

20 A

Rated input/output voltage, DC

12...24 V
