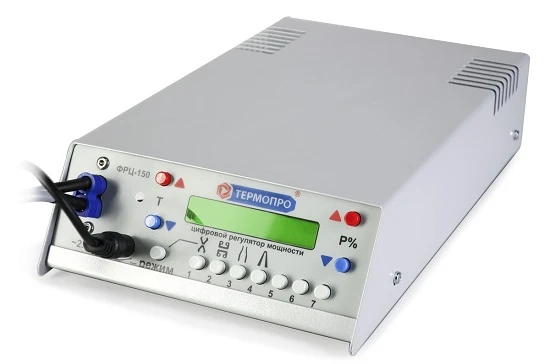

Digital Pulse Soldering Station FRC-150 with Power Regulator

Available for Import

Digital Pulse Soldering Station FRC-150 - Ideal for Sensitive Electronic Component Assembly

Electric Welding Machines

Manufacturer: TECHNO-ALLIANCE ELECTRONICS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

For mounting/dismounting operations of heat-sensitive electronic components with limited heating rate. For these purposes, the soldering station is equipped with a double-circuit pulse thermopincer or pulse soldering iron. The soldering pulse time and the heating rate of the pulse tool are controlled and monitored by the digital control system of the soldering station.

The heating rate is determined by the power supplied to the pulse tool, which is controlled by the operator. The pulse soldering station is very convenient for repairing and manufacturing cable products. The technology of soldering pins of multi-row connectors using a single-circuit thermal tweezers is safe for neighbouring wires.

Gentle stripping of insulation from wires with the pulse tool does not cause burning and does not overheat thin cable cores.

Specifications

Type of product according to PP RF 616

Soldering equipment

Assignment

Pulsed soldering systems are used in assembly/disassembly operations of temperature sensitive electronic components with heating rate limitation. The heating rate is selected by the technologist or radio assembly technician and is controlled by varying the

Maximum power consumption

100 W

Maximum current consumption

0.5 A

Maximum soldering tool power

100 W

Power adjustment limits

5...100 %

Discreteness of power adjustment

1 %

Heating time control limits

0.1...99.9

Discreteness of heating time adjustment

0.1

Number of memory cells for recording a group of parameters heating time/instrument power

7 pcs

Weight excluding power cable and control pedal

2.7 kg

Body length

260 mm

Housing width

160 mm

Enclosure depth

65 mm

Rated supply voltage for pulse thermal tool

2.6 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
