Panelboard digital multifunctional electrical metering

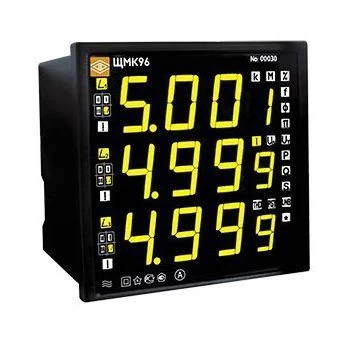

The ShchMK96 device is designed for measurement, control and registration of the main parameters of electrical energy up to the 50th harmonic in single-phase two-wire and three-phase three-wire and four-wire electrical networks and AC power supply systems with a nominal frequency of 50 Hz; measurement, registration and accounting of active and reactive electrical energy for specified time intervals in three-phase AC networks; measurement and control of electric power quality indicators according to class A and their statistical processing with displaying of the results of the measurement and control of electric power quality indicators.
Fields of application: monitoring of power quality indicators in power distribution systems; control of power quality indicators in AIMS systems, in production and housing and communal services; measurement of network parameters and transmission to telemechanics systems, automated process control systems and SM&CCS; registration of emergency cases; measurement of power losses in power supply lines.
