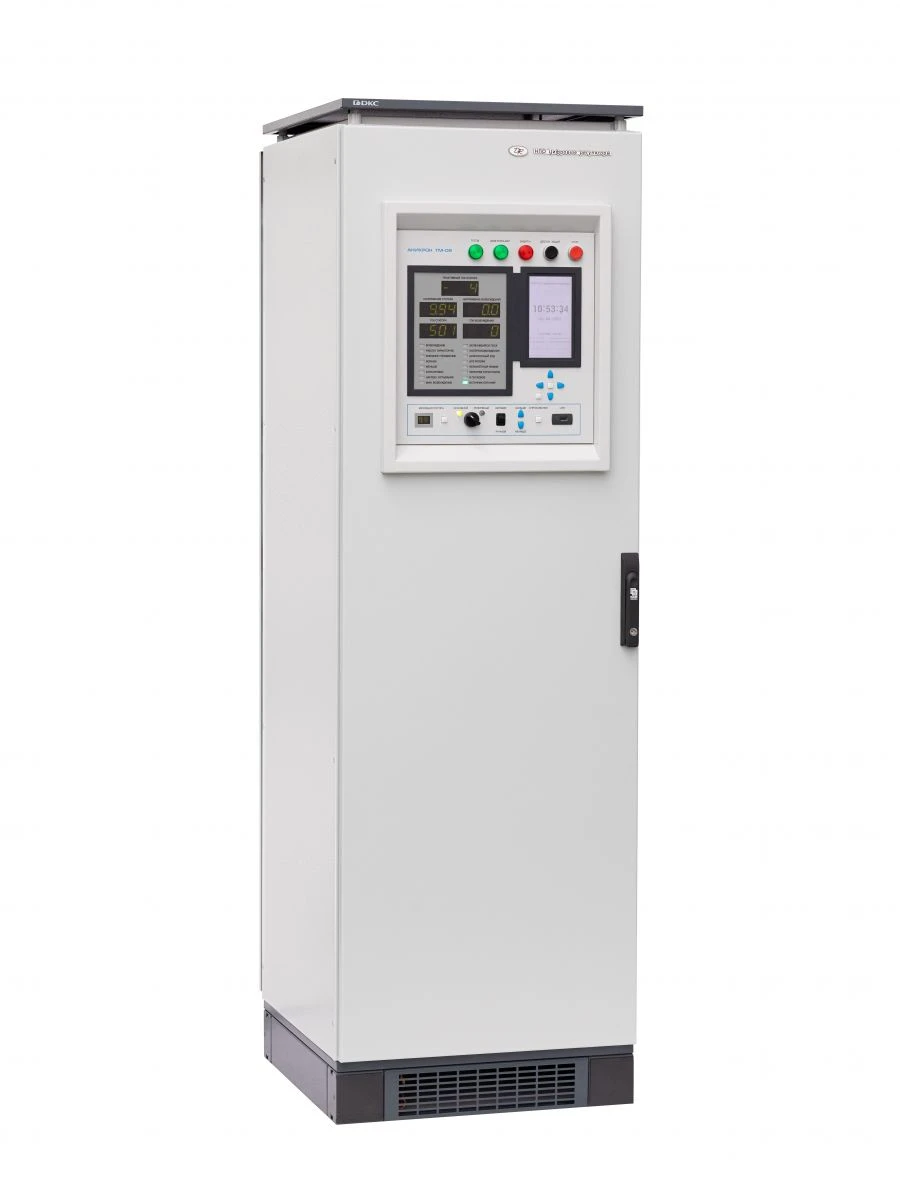

Digital Excitation Regulator for Synchronous Motor ANIKRON TM-08

Digital Excitation Regulator for Synchronous Motor ANIKRON TM-08

Brand: ANIKRON

$9,000 - $30,000 USD

MOQ: 1 pieces

Key Features

Rated excitation voltage: 30V to 250V or more

Rated field current: 100A to 350A and over

Rated effective supply voltage of the AC power converter: 380 thousand m³

Rated supply voltage of the electronic part: 220 thousand m³

Supplier Information

LLC NPO "DIGITAL REGULATORS"

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

The digital controller is designed to control excitation of synchronous motor with power up to 12.5 MW and voltage up to 10 kV with brushless excitation system during direct and reactor start-up, synchronous operation and emergency modes.

Specifications

Rated excitation voltage

30V to 250V or more

Rated field current

100A to 350A and over

Rated effective supply voltage of the AC power converter

380 thousand m³

Rated supply voltage of the electronic part

220 thousand m³

Net weight

240 m² living area

Climatic version

UHL4, U3, TC3, TC4

Size; mm

608x1914x763 mm

Mark

ANICRON TM-08

Equipment

basic

Assignment

The regulator is designed to control excitation of synchronous motor with power up to 12,5 MW and voltage up to 10 kV with brushless excitation system during direct and reactor start-up, during synchronous operation and in emergency modes.

Type

Digital synchronous motor excitation controller

Temperature class

For outdoor enclosure surface not exceeding 30 C

Degree of protection

IP20, IP21, IP22, IP31, IP42, IP54, etc.

Housing material

Metal

Color

RAL7035

Length

763 mm

Height

1914 mm

Width

608 mm

Frequency

SBVVBG kg

Current capacity

1 cm³
