Diesel pump station DNS.SHP-3 E123 (Cornell 6NHTB/FPT IVECO C13)

Centrifugal Liquid Pumps

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

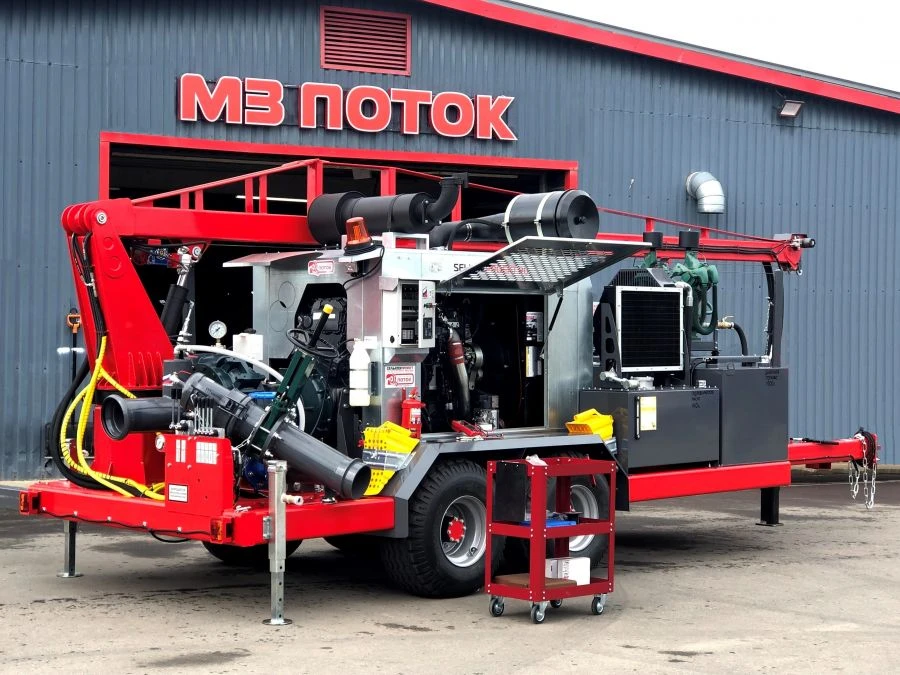

Diesel pumping station (DPS) with weatherproof bonnet, hose holders, submersible pump, 12.5m rotary boom, hydraulic station, compressor, purging fittings and suction hose with quick couplings Ø 8" - 18m. It is designed for transporting liquid organic fertilisers through a hose pipeline.
Cornell's RUN-DRY™ system for dry running with lubrication in the mechanical seal area.
CYCLOSEAL® technology prevents foreign particles from entering the mechanical seal.
Suction system - hydraulic vacuum pump.
Two-axle chassis (technological trolley ) - with parking lights, parking jacks, height-adjustable hook loop, maximum speed - 15 km/h, length - 8.5m.
DNS is equipped with ComAp control panel.

Specifications

Width 2400 mm

Height 2760 mm

Submersible hydraulic pump. - Flow rate - 60-440 m3/hour - Head - 30 m - Hydraulic pressure - 0.2 MPa - Pump height - 954 mm - Pump width - 652 mm - Pressure connection diameter - 150 mm - Weight - 206 kg

Air compressor. Air compressor with purge fitting and hydraulic drive with shut-off valve and accessories (capacity - 4 m3/min, pressure - 7 atm).

Permissible size of inclusions in the pumped liquid. 51 mm

Maximum dry solids content of the pumped liquid. 6 %

Engine make. Diesel engine IVECO FPT C13.

Engine power. 375 kW

Fuel tank capacity. 1500 l

Pressure 160 m

Feeding 800

Medium density, not more than 1200

Medium temperature -20...40 °C

RPM 2100

Length 8500 mm

Weight 6600 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
