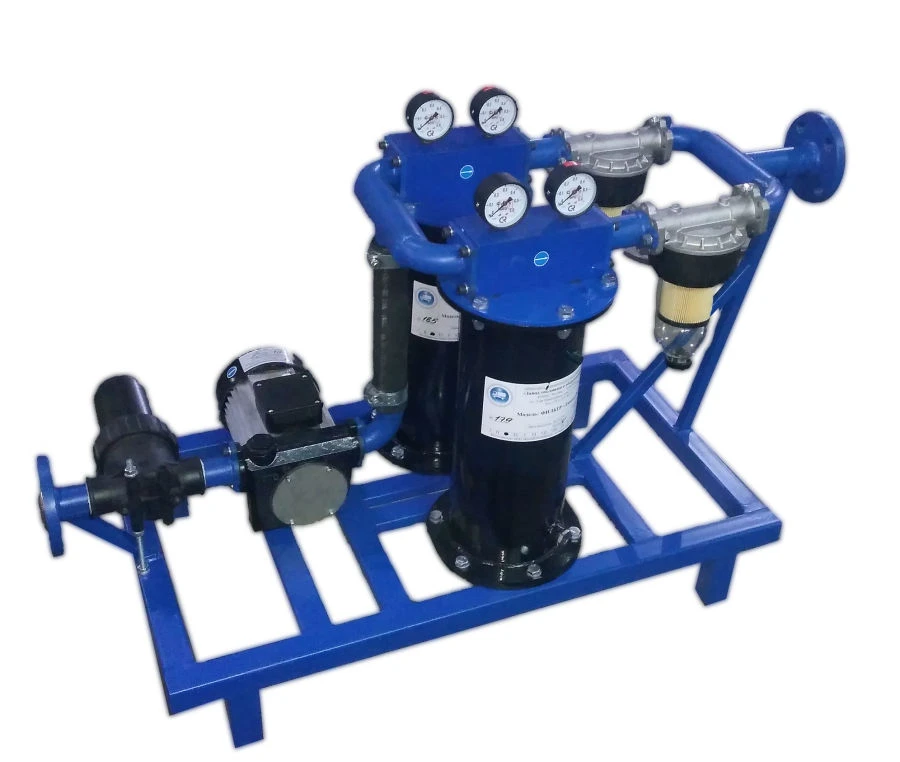

Diesel Fuel Fine Filtration Separator for Effective Removal of Impurities

Stationary installation for fine purification of diesel fuel (option: paraffin, petrol, oil) from mechanical impurities and water. The main filtering element is TANKER-5 filters. Completions depend on the technical task and needs:.

The bulb of the filter element is metal. Multistage purification system from 1 to 200 microns. Can be equipped with various counters OGM, PPO, DD, etc.

Separation or absorption of water from 90% to 99,9%. Capacity 40-1000 l/min. Mechanical/electronic counter.

Pump TANKER suction height up to 8m, delivery up to 30m, diesel or petrol motor drive. Manual drain cock, sight glass (for metal bulb filter), contamination indicator, oil and petrol resistant hoses, ball valves. Version on a frame or in a closed hopper or in a block-modular container.

Options: electronic water sensor, GSM controller, etc. APPLICATION AREA: Departmental, private and commercial petrol stations, Diesel boilers, petroleum depots and warehouses of petroleum products.
