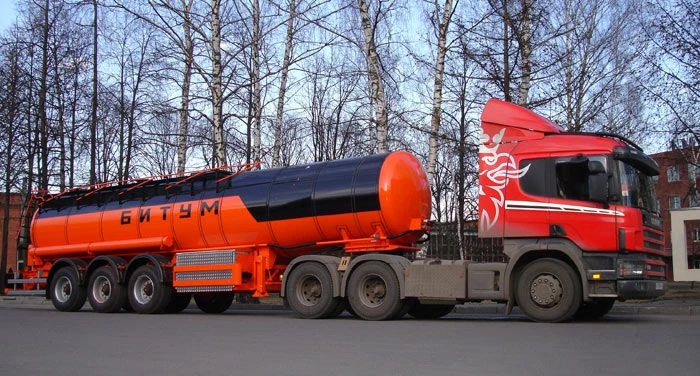

Dark Oil Products Tank Semi-Trailer BCM-111 for Safe Transport of Oil Products

Cargo weight of slurry tanker semi-trailer, kg8,600
GVW of semi-trailer-tanker, kg, not more30 100
Nominal tank capacity, litres25 000
Payload capacity, kg, max22 000
Distribution of the total weight of the tank semitrailer, kg:
- fifth wheel load of the tractor9 100
- load on the rear bogie21 000
Two-axle pneumatic/spring suspension
Filling via overhead hatches
Emptying by gravity flow/pump
Overall dimensions, mm:
- length11 500
- width2 500
- height3 450
Thermal insulation mineral wool, 70 mm
Stirring system to prevent delamination of bitumen emulsion
Gross combination weight, kg
37 450
