CSD Medium Pressure Cylinder Kit with Valve Set for K-830-240-5M Steam Turbine

Available for Import

CSD Medium Pressure Cylinder Kit for K-830-240-5M Steam Turbine Application

Steam Turbine Parts

Manufacturer: SILOVYE MASHINY OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

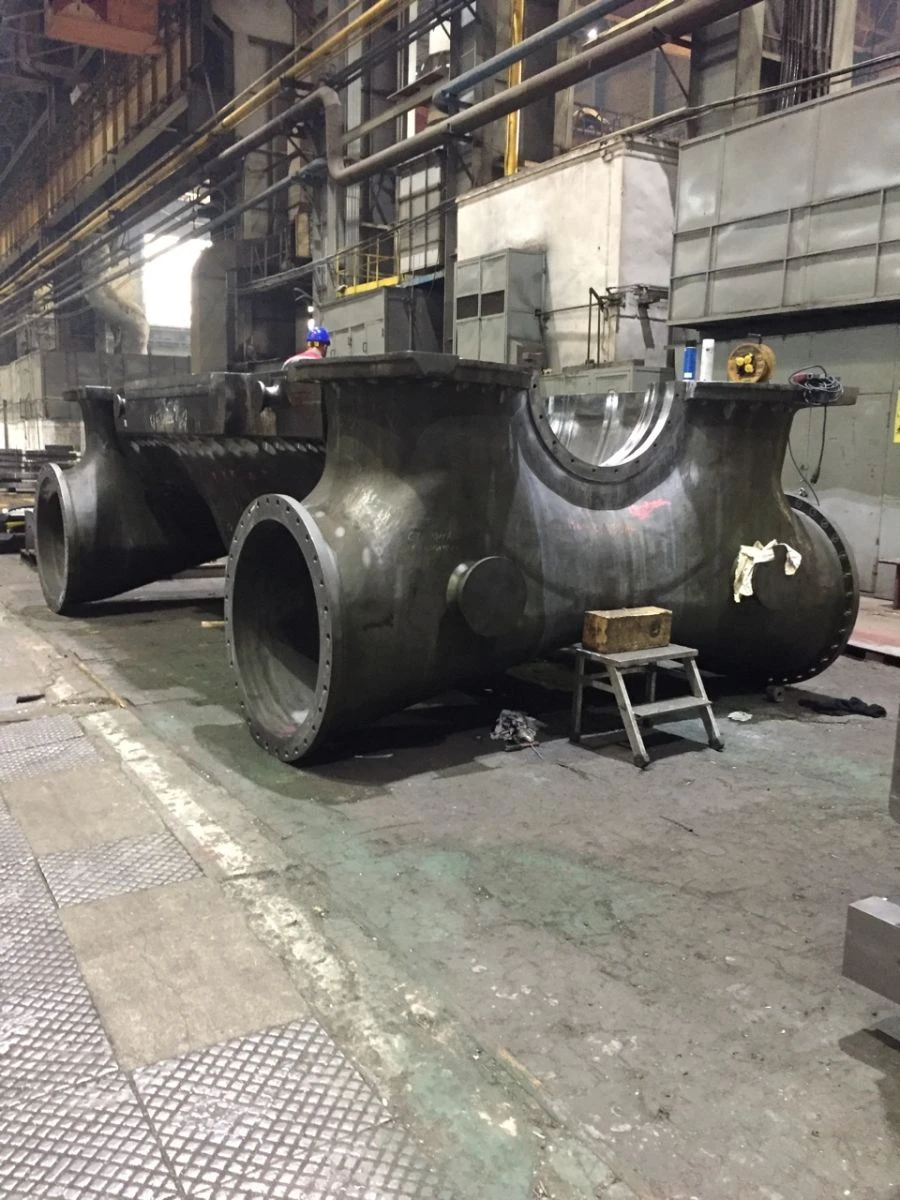

CDC including:- cast outer casing consisting of six parts, the front part resting on a welded bearing (bearings are not included in the scope of delivery), the rear part - on the low pressure cylinder housing;- cast inner casing;- stator parts of the flow part;- one-piece forged medium pressure rotor (MPR) resting on two sliding bearings.

Specifications

Maximum power at the generator terminals

830

Specific heat consumption per turbine unit

1842.4

Steam temperature upstream of stop valves CVD and CSD

540 °C

Condenser pressure

3.4

Acute steam pressure upstream the stop valves of CVD and CSD, MPa

23.54 MPa

Service life of new turbine components

40 year
