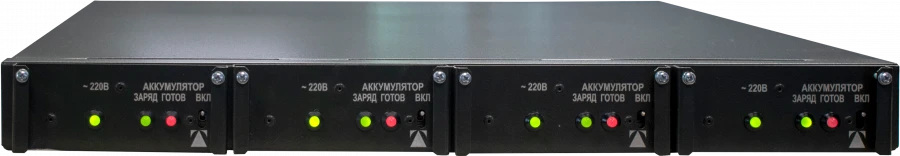

Continuous Power Supply Block NABAT A1R-21-P (9322-9326) for Uninterrupted Power Supply

Blocks 9322 (9323, 9324, 9325, 9326) (hereinafter - the product) are designed for uninterrupted power supply of technical means. The product is designed for round-the-clock operation and does not require the constant presence of service personnel during its operation. The product versions provide from one to four power supply channels with nominal voltage of 27 V and output power of not less than 35 W (when the network ~220 V / 50 Hz is connected), and from 26 V with reduction to 18 V (during one hour, in each independent channel (in the absence of the network ~220 V / 50 Hz).

Power consumption, V?A, not more: 320 (Unit 9322), 240 (Unit 9323), 160 (Unit 9324), 80 (Unit 9325, Unit 9326). Power supply of the product from single-phase AC mains with frequency (50 ± 1) Hz, V 220±22. DC output voltage, V: when powering from AC mains 27 ± 2; when powering from a rechargeable battery from 18 to 26.

Capacity of the battery in each channel, Ah, not less than 3.
