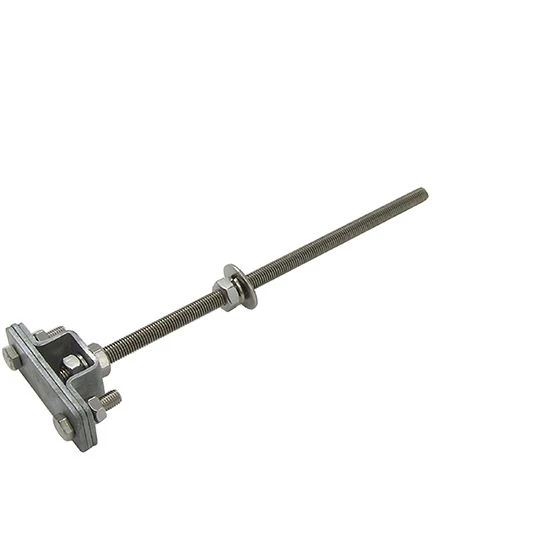

Conductor Holder for Grounding and Lightning Protection - DP-50HZ-04.320
All Categories

Categories

Language

Quick Links

WhatsApp Inquiry
Conductor Holder DP-50HZ-04.320 for Grounding and Lightning Protection Available for Import

Conductor Holder DP-50HZ-04.320 for Grounding and Lightning Protection Installation

Metal Hardware Products
Manufacturer: ELMASHPOM LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Designed for fixing and connecting (parallel) flat (30-50) x (3-6) mm clamped conductors (lightning protection current collectors and grounding conductors) made of hot-dip galvanised steel to walls, plinths and ceilings made of the following materials: concrete, full-body brick, natural stone. Fastening is made with the help of a chemical anchor through the insulation made of combustible materials. Used as part of lightning protection, earthing and equipotential bonding systems. Made of steel with hot zinc coating according to GOST 9.307-89, fasteners made of stainless steel.

Specifications

Weight
0.423 kg
Material
Material of bracket and holder plates: steel with hot zinc coating according to GOST 9.307-89
Type
conductor holder
Size
78-30-370 mm
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
