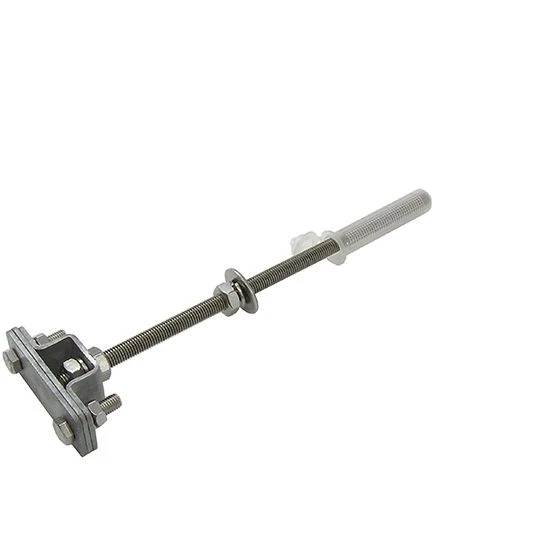

Conductor Holder DP-50Hz-04.315PL for Securing Flat Conductors

Designed for fixing and connecting (parallel) flat (30-50) x (3-6) mm clamped conductors (lightning protection current collectors and grounding conductors) made of hot-dip galvanised steel to walls, plinths and ceilings made of the following materials: full-body brick, aerated concrete, foam concrete, expanded concrete, expanded clay, porous large-format block. Fastening is carried out with the help of a chemical anchor through the insulation made of combustible materials with the use of a plastic sleeve 15x85 mm. It is used as part of lightning protection, earthing and equipotential bonding systems. Made of steel coated with hot zinc according to GOST 9.307-89, fasteners made of stainless steel.
