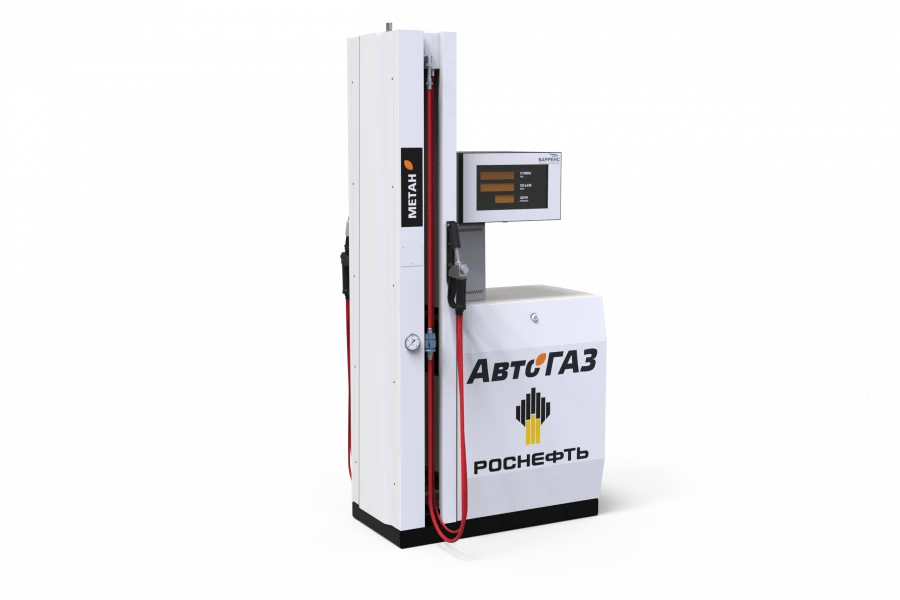

Compressed Natural Gas Dispensing System BRS-GZK for Reliable Fuel Supply
Manufacturer:
BARRENS OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Compressed natural gas dispensing systems BRS-GZK (hereinafter referred to as the dispensing system) are designed directly for dispensing, measuring the volume and mass of compressed (compressed) natural gas when dispensing it into the cylinders of vehicles at automotive gas-filling compressor stations (AGFCS), multi-fuel filling stations (MAFS), as part of mobile gas-filling stations (MFGS) and natural gas compression modules (NGCM).
Specifications
Service life, at least
20 year
Voltage
220 V
Control air pressure in models with pneumatically controlled valves (must be within range)
0.6...0.85 MPa
Power consumption, max.
1 kW
Maximum dosage for indication of gas delivery in models for fuelling PAGS, not less, norm. m3
99999.99
Maximum dosage for indication of gas dispensing in vehicle refuelling models, at least, norm. m3
999.99
For PAGS
5 kg
For motor transport
2 kg
Smallest measured flow rate, kg/min.
1
Maximum measured flow rate (depending on model), kg/min
B1/B8 2100/900 MHz
Gas pressure at the inlet to the tempering system
25 MPa
Dimensions (DxWxH), mm
1100x610x2250
Operating temperature
SBVVBG °C
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
