Available for ImportComplete Tractor Trailer Axle Assembly PT-23.01.07.00.00 for Efficient Towing
Manufacturer:MORDOVAGROMASH OJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

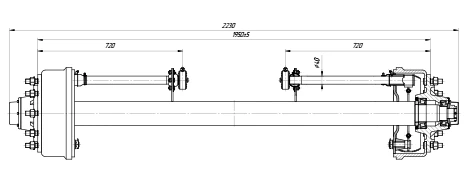

The tractor trailer axle consists of a cross beam, at the ends of which the braking system elements are mounted. Brake drums are equipped with rods with levers for drive The beam is fitted with brackets for mounting spring suspension, axle load capacity 12t.
Specifications
Axle assembly with ABS
axle assembly
Payload
12000 t
Applicability
trailers and semi-trailers
Number of wheel studs
10 pcs
Axis
Axis
Wheel studs
M22x1.5
Brakes
drum
Tire track
1950 mm
FH ground clearance range (ground clearance) for air suspension
Without air suspension
Oshinovka
Single slope
Type of suspension
spring
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
