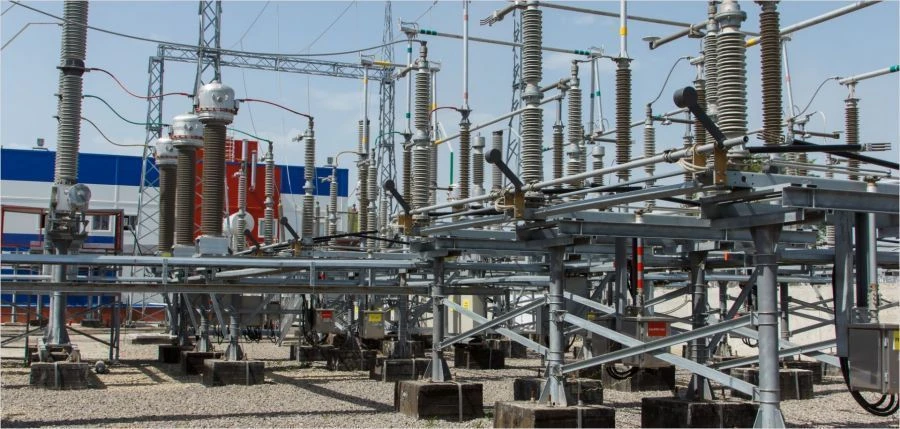

Complete Block-Type Transformer Substation KTPB-TE 6(10)-220 kV for Efficient Power Distribution

Low-Power Electrical Transformers

Manufacturer:T-ENERGY LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Complete transformer substation block KTPB-TE 6 kV, 10 kV, 35 kV, 110 kV, 220 kV is designed to receive, convert and distribute electrical energy of three-phase alternating current of industrial frequency 50 Hz in networks with a nominal voltage of 35 kV, 110 kV and 220 kV with the use of power transformers with a capacity of not more than 16 kVA.

KTPB-TE is manufactured at the own production site of LLC T-ENERGIA. The substation consists of:

- open or closed switchgears in block design or in the form of modules, with flexible and rigid wiring;
- power transformers;
- general substation control centre complete with relay protection, automation, telemechanics, communication panels, AC and DC auxiliary panels and other equipment.

Specifications

Type

Block/modular

Rated primary voltage; V

220000 V

Rated load current; A

3150 A

Compactness

equipment ru 35 kV is installed on compact blocks of own production of OOO "t-energia"; power and control cables are laid already during their manufacture (within the block). the blocks are completed with contt

High factory availability

The equipment is characterised by high factory readiness; the equipment is mostly installed during production; which considerably reduces time and costs for installation of the switchgear.

Multidimensionality

switchgear (ru) 6(10); 35; 110; 220 kV as a part of substation ktpb-tee can be made both open and closed. the advantage of the open variant is lower cost. the advantages of the closed variant are comp.

Customized execution

substations are realised both according to standard schemes (according to the work of Jsc "energoset-project" "schemes of electrical circuit diagrams of switchgears for voltage class 35-750 kV. standard solutions"); and according to non-standard schemes.
