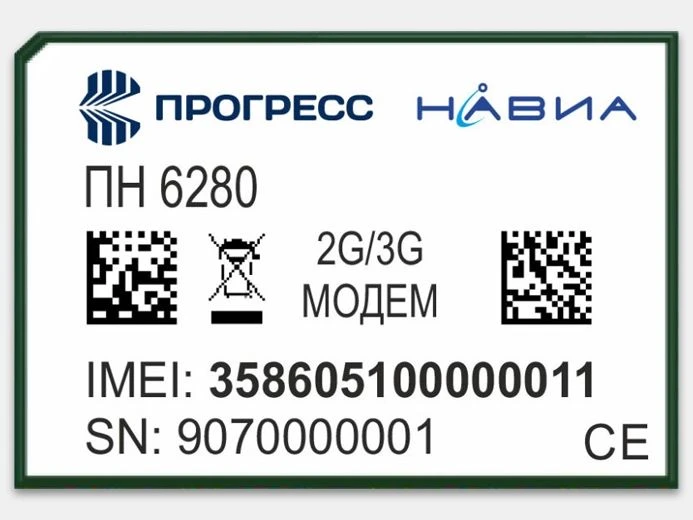

Available for ImportCompact GSM/UMTS Communication Module PN6280 for Intelligent Transport Systems
Manufacturer:NIIMA Progress OJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Small-size communication module of GSM/UMTS communication standards "PN6280" - modem designed for receiving and transmitting data in intelligent transport systems for monitoring of motor vehicles, ensuring operation in 2G/3G cellular networks of EGSM900/DCS1800/UMTS900/UMTS2100 frequency ranges, transmitting and receiving voice calls, SMS messages, packet data, transmitting and receiving information
minimum data set and providing two-way voice communication of the ERA-GLONASS emergency response system.
minimum data set and providing two-way voice communication of the ERA-GLONASS emergency response system.
Specifications
EGSM900 frequency range
0-124
EGSM900 frequency range
935...959
EGSM900 frequency range
925...935
Frequency range of the DSC1800
512-885
Frequency range of the DSC1800
1710...1785
Frequency range of the DSC1800
1805...1879
UMTS900 frequency range
2712-2937
UMTS900 frequency range
2937-3088
UMTS900 frequency range
882...912
UMTS900 frequency range
927...957
UMTS2100 frequency range
9612...9888
UMTS2100 frequency range
10562...10838
UMTS2100 frequency range
2112...2167
UMTS2100 frequency range
1922...1977
Output power, dBm, not less than
33
Output power, dBm, not less than
24
Receiver sensitivity, dBm, max.
-104
Receiver sensitivity, dBm, max.
-100
Receiver sensitivity, dBm, max.
-114
Receiver sensitivity, dBm, max.
-117
Supply voltage range
3.4...4.2 V
Housing type
LGA, 90 pins
Operating temperature range
40...85 °C
Support ERA-GLONASS/eCall
Available
Width
19.5 mm
Length
29.5 mm
Height
2.6 mm
Output power, dBm, not less than
30
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
