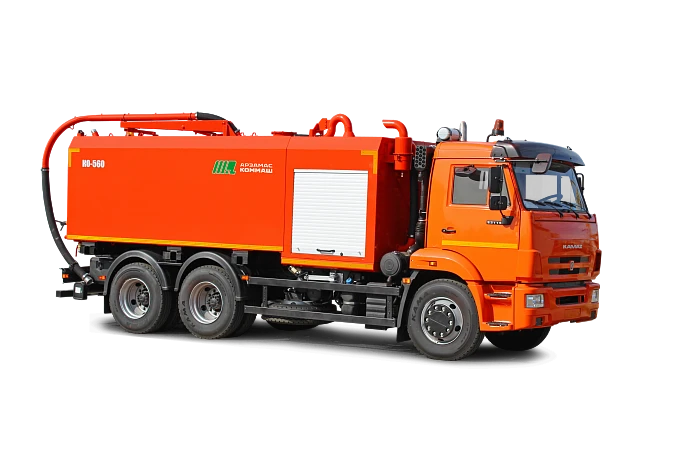

Combined Machine KO-560 for Year-Round Cleaning, Model 65115-VKH

Available for Import

KO-560 Combined Machine for Year-Round Drain and Sewer Cleaning

Municipal Road Vehicles

Manufacturer: KOMMAШ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The combined machine KO-560 is designed for mechanised preventive year-round and emergency cleaning of rain gutters (manholes) of drainage and sewerage networks from sludge and its transportation to the place of unloading. The vehicle chassis is equipped with a sludge collector and sewer cleaning equipment. Suction equipment includes a tank, vacuum system, suction boom on the support and turning device, controls.

The equipment is equipped with an electric system of sludge level control in the tank. Sludge is discharged by lifting the tank. Channel cleaning equipment includes water tanks, high-pressure water pump, a mechanism for feeding and laying the hose, a set of hydrodynamic nozzles, heating unit, controls.

Temperature mode of operation from minus 20°C to plus 40°C.

Specifications

Type of product according to PP RF 616

Vehicles for public utilities and road maintenance

Engine type

diesel

Base chassis type

kamaz-65115-a5, kamaz-65115-50

Type

Combination machine

Machine type

Combination machine

Technically permissible (authorized) maximum mass

25200 kg

Weight of special equipment

6100 kg

Vacuum pump capacity, (passport data)

720±70 m3/hour

Highest vacuum in the tank created by the vacuum pump

0.085 MPa

Water pump delivery, (nameplate data)

215 l/min

Operating water pressure generated by the pump

16 MPa

Water tank capacity

5 ?3

Cleansing, suction depth

8 m

Diameter of the pipeline to be cleaned

100...1000 mm

Maximum noise level at the operator's workplace

Sludge tank capacity

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
