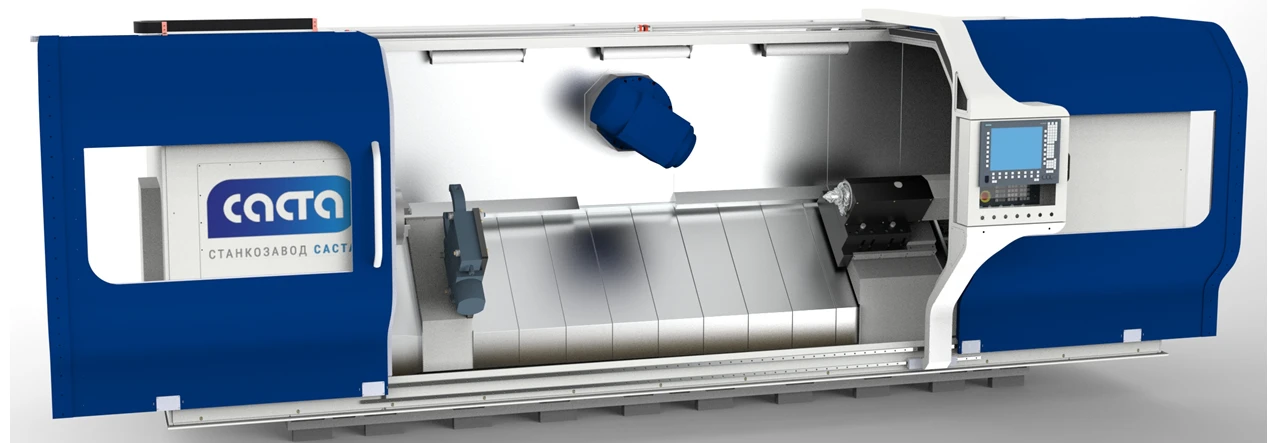

CNC Turning-Milling Center Model NT500C30-5X for High-Speed Machining
Manufacturer:
SASTA PJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
- - CNC turning and milling centre mod. NT500C30-5X is designed on the basis of turning machining centre mod. NT500.
- The machine combines high-speed machining capabilities, high positioning accuracy and repeatability, and high torque.
- The machine is equipped with a Y column.
- All of these features expand the machine's processing capabilities, allowing for greater flexibility
Specifications
Type of product according to PP RF 616
Lathes
Length
8000 mm
Width
4500 mm
Height
3200 mm
Weight
26000 kg
The largest diameter of the workpiece,
to be machined above the bed
700 mm
Movement in the X axis
(transverse movement of the slide)
750 mm
Processing length
3000 mm
Moving in the Y axis
900±250 (±150 optional)
Traversing speed: Working feeds in X, Z axes
10 m/min
Accelerated movement in X, Z axes
24 m/min
Axis accuracy: positioning accuracy
±0.005 mm
Maximum speed
spindle speed (+ C-axis)
5000
Maximum torque
550/800 Nm
Main engine power
22/26 kW
Spindle bore diameter
152 mm
Maximum rotational speed of the drive tool of the milling and turning head with B axis
12000
Milling spindle power
38 kW
Maximum torque
165.7 Nm
Tool changer magazine capacity
120 pcs
Moving the tailstock quill
150 mm
Diameter of tailstock quill
150 mm
Tailstock quill taper
Morse 6
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
