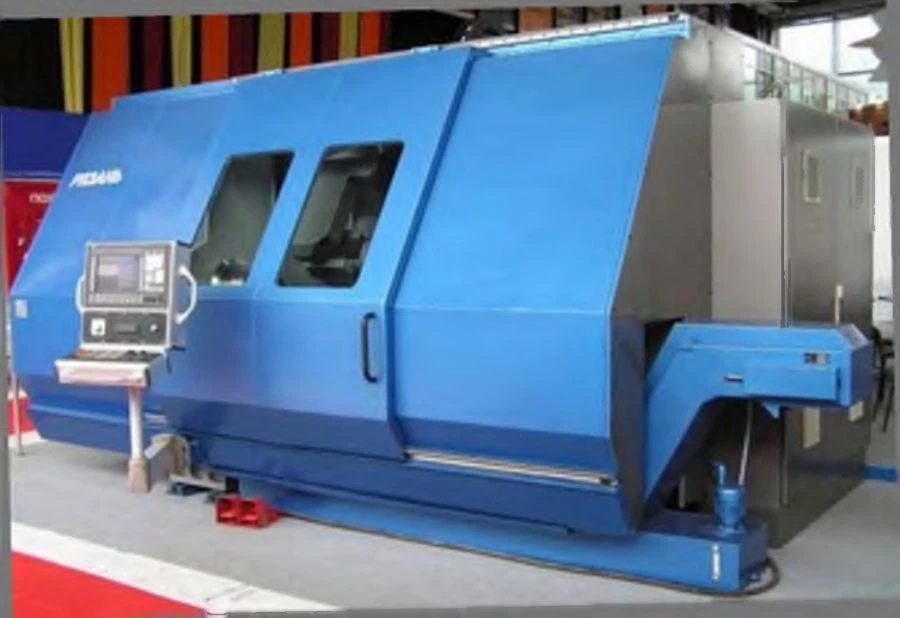

CNC Lathe Machining Center for Precision Work 1715Y-0.5

CNC Metal Lathes

Manufacturer: RSZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

CNC Turning Centre Model 1728Y-2D CNC Turning Centre Model 1715C-0.5 CNC Turning Centre Model 1715C-1 CNC Turning Centre Model 1715Y-1 CNC Turning Centre Model 1715-0,5

CNC Turning Centre Model 1715C-2D-0.5

Description

The CNC lathe machining centre model 1715Y-0.5 is designed for turning workpieces with straight, stepped and curved profiles in centres and chucks. The machine can be used for external and internal turning, milling, drilling, threading of parts made of bar up to 46 mm in diameter in automatic cycle and piece workpieces up to 210 mm in diameter in semi-automatic cycle. The machines have large ranges of feeds and spindle speeds, which fully ensure the selection of standard cutting modes for machining workpieces from various construction materials. Accuracy class P according to GOST 8-82

Specifications

Type of product according to PP RF 616

Turning machining centers (single and multi-spindle)

Machine weight, not more

4500 kg

Height

1850 mm

Width

1800 mm

Length

3100 mm

Warranty period of operation

B1/B8 2100/900 MHz

Maximum length of the workpiece to be processed, max.

500 mm

Largest diameter of the workpiece to be processed, max.

210 mm

The largest diameter of the workpiece to be installed above the bed, not more than

300 mm

Distance between centers

500 mm

Width without remote control/ with remote control

1800 mm

Width (without remote control/ with remote control)

1800 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
