Centrifugal Submersible Pump Section ECMT 5-25DP for Efficient Water Extraction

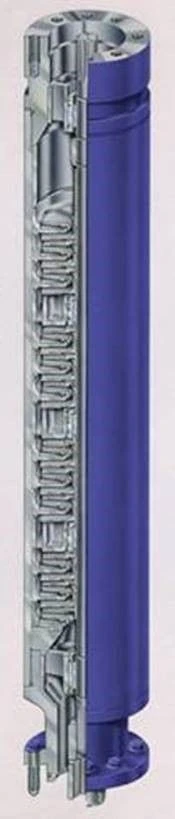

Section of electric centrifugal submersible pump ECNMT 5-25DP. Represents a cylindrical body, with a shaft inside, on which the working elements (EO) of the pump are placed. It is designed for pumping out borehole fluid. Nominal capacity - 25 m3/day; Actual number of stages - 253; Head flange diameter - 103 mm; Base flange diameter - 103 mm; Length of the pumping section casing - 6000 mm; Casing material - carbon steel 35; Shaft diameter - 17 mm; Material of radial support sleeve - tungsten carbide; Manufacturer - Tyumen Pumps Schlumberger, Russia.
