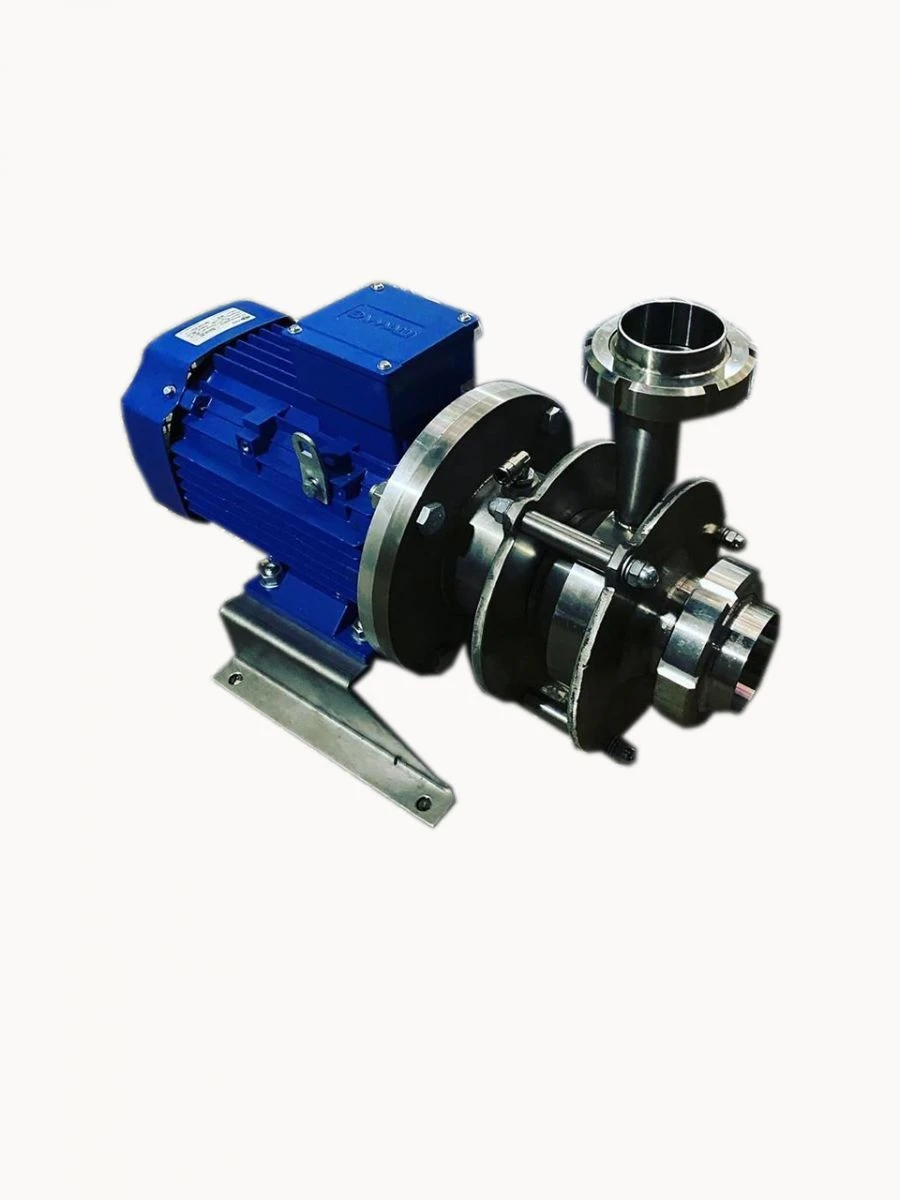

Centrifugal Monoblock Pump Sieva 10

Centrifugal Monoblock Pump Sieva 10

Brand: Sieva

$900 - $3,000 USD

MOQ: 2 pieces

Key Features

Outlet pressure: 0.2 thous. t storage

Climatic version: ?4

Operating medium: Condensate

Housing material: stainless steel 18?25?19?2L

Supplier Information

ERMAK LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

Sieva 10 technical specification
Pump type centrifugal monobloc horizontal pump for vacuum evaporator plants
Impeller of open type
Impeller material stainless steel 18?25?19?2?
Material of working cover stainless steel 18?25?19?2L
Casing material stainless steel 18?25?19?2?
Bracket material 08?18?10
Operating temperature, not more, °?90
Capacity, not more, m.cu.h/h10
Differential pressure at the outlet in the discharge pipe, not more than, m20
Created relative rarefaction in the suction branch pipe, not less than, bar0.6
Industrial electric motor 380V
Climatic executionU2 (according to GOST 15150-69)
Power, kW2.2
Electric motor speed, rpm3000
Inlet pipe coupling assembly DIN11851 DN80
Outlet pipe socket assembly DIN11851 DN65
Double mechanical seal "back to back".
Overall dimensions, max. mm
length470
width 280
height335
Weight, not more than, kg47
Additional equipment built-in cooling tank

Specifications

Outlet pressure

0.2 thous. t storage

Climatic version

?4

Operating medium

Condensate

Housing material

stainless steel 18?25?19?2L

Working pressure

0.2 thous. t storage

Weight

47 m² living area

Operating temperature range

20...140 million m³

Feeding

10 bit/s

Pressure

0.2 m

Designation

Sieva10
