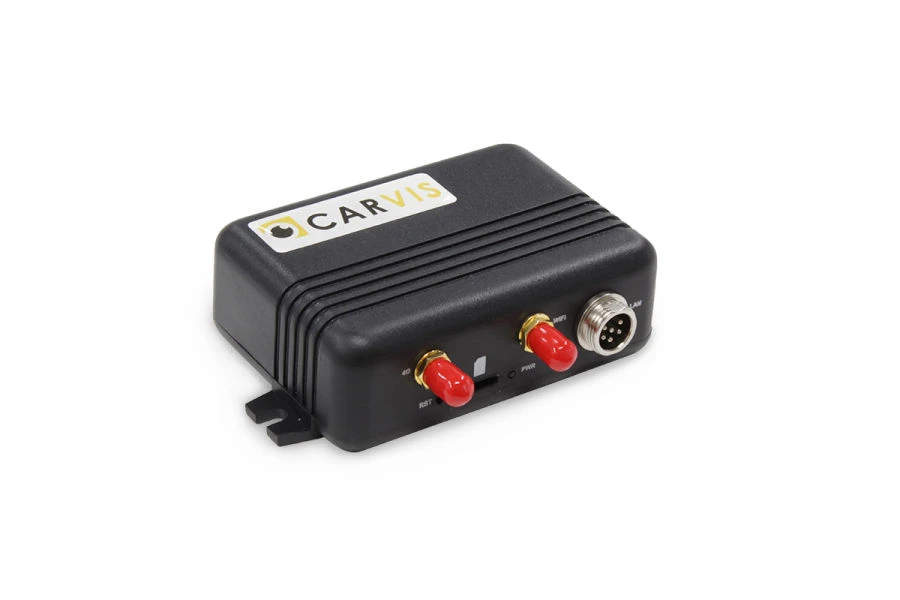

CARVIS MR-01GW Compact 3G/4G Wi-Fi Router for Mobile Connectivity

Telecom Equipment

Manufacturer: UNITECH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Router CARVIS - router compact size with support for mobile communications standards 3G and 4G, as well as wireless network Wi-Fi. One of the router's features is a 6-pin aviation connector with Passive Power over Ethernet (PoE), which allows both power and data to be transmitted through a single cable, providing an efficient and convenient solution for deploying and maintaining network infrastructure. The second feature is the ability to use the device as an access point to connect other devices or in client mode to connect to an existing network.

Specifications

Wi-Fi Standards

IEEE 802.11 b/g/n

Wi-Fi operation modes

Access point (AP), client mode (STA)

Wi-Fi frequency range, GHz

2.4

Mobile network ranges

4G LTE-FDD: B1/B2/B3/B5/B7/B8/B20 4G LTE-TDD: B38/B39/B40/B41 TD-SCDMA: B34/B39 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900

Supported network services

NTP, DNS

Supported network protocols

ARP, IPv4, ICMP

Support VPN

Availability (L2TP, PPPTP)

Port penetration

availability

Presence/setup of DHCP server

availability

Reset button

1 pcs

Number of supported WiFi antennas

1 pcs

Number of supported 4G antennas

1 pcs

4G and Wi-Fi antenna connector

SMA

LAN port speed, Mbps

10/100

LAN Connector

Aircraft interface (6-pin)

SIM card size

Nano

Number of SIM slots

1 pcs

Maximum energy consumption, mA

120

Supply voltage, V

DC 12+/-3

Completeness

GSM antenna, Wi-Fi antenna, cable 6pin (mum) - 6pin (dad), 0,2m, adapter 6pin (dad) - RJ45 (mum)+1 power, 0,2m

Dimensions, mm

106,9*73*31,6

Housing material

Plastic

Operating temperature

-30'C...+70'C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
