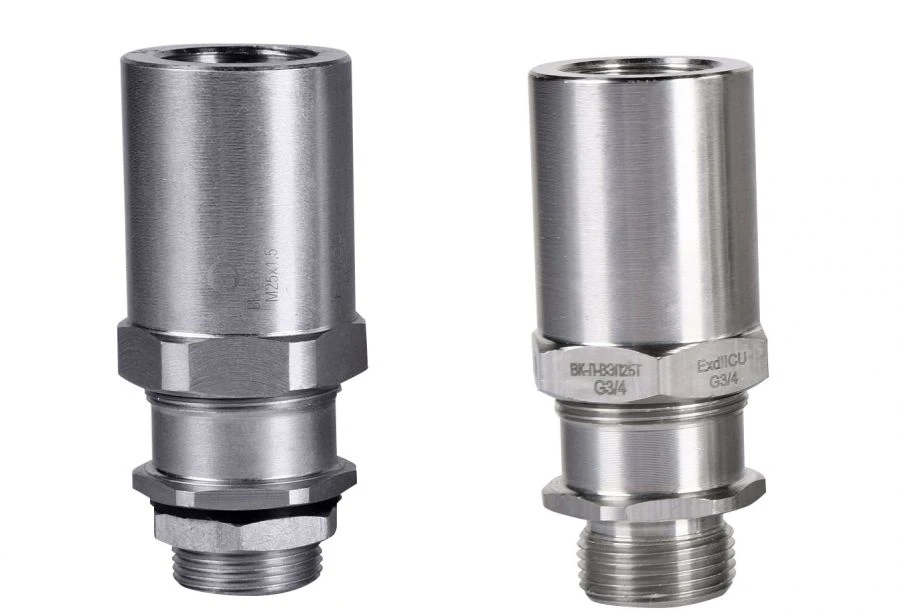

Cable Entry Type VK-X-VEL 2BT-M63 for Secure Cable Installation

Cable Accessories

Manufacturer: VELAN OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Cable gland type ??-?-??? 2??-?32-G1-?1,5-???? Cable gland type ??-?-??? 2??-?40-ExdG-G1 1/4-?1,5 Cable gland type ??-?-??? 1??-?63-ExeG-G2-?1,5 Cable gland type VK-X-VEL 2BT-M16-G3/8-V1,5-PROM Cable gland type ??-?-??? 2??-?25-ExdG-G3/4-?1,5

Description

Cable glands are designed for sealing and fixing flexible armoured and unarmoured cables with rubber or plastic insulation of round cross-section of pipe wiring when they are inserted into stationary, mobile or portable electrical equipment.

Specifications

Ambient temperature

-60...55 °C

Weight

1.4 kg

Degree of protection against external influences

on special order IP67/IP68;IP66

Explosion protection marking

Ex tb IIIC Db;1Ex d IIC Gb

Cable diameter without armor

25...49 mm

Types of internal threads for external connection

R 2;K 2;G 2;M63x1,5

Types of cable gland threads

R 2;K 2;G 2;M63x1,5

Length

135.5 mm

Cable entry material

anticorrosive coated steel; stainless steel; brass

Climatic version

OM1;B1.5
