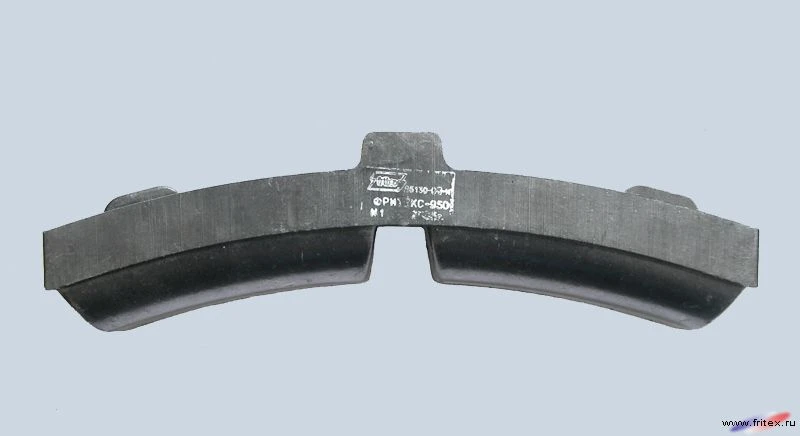

Brake Lining for Tram Cars 7 T66-13 - Ensure Reliable Braking Performance

Brake linings are used in wheel pairs of tram cars. The lining is a friction material moulded in a press mould. Method of manufacture: cold and hot moulding in a mould at a certain pressure and temperature.

Brinell hardness, NV 16/1875/30 can be presented in the range from 12 to 25 incl. Coefficient of friction for cast iron grade ??-15 can be presented in the range from 0,35 to 0,55. Linear wear on cast iron grade ??

15, mm, not more than 0,13.
