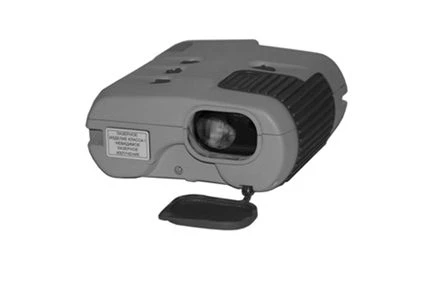

Binoculars-dalimeter laser multifunctional BDLM

Rangefinders and Theodolites

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The device is designed for observation of wildlife and surrounding terrain in daytime conditions, as well as for use in the field of geodesy and tourism.
The device allows you to:
- determine the coordinates of the device location of the object (latitude, longitude, altitude above sea level);
- determine the coordinates of the observed objects (range, direction relative to the North, elevation above the horizon, latitude, longitude, height above sea level);
- measure vertical and horizontal angles;
- transmit measured or recorded data to external devices (PC) via RS232 interface channel.

Specifications

Power supply voltage 6 V

Weight, not more 1.2 kg

Measured range range 50...4000 m

Wavelength of the transmitter Safe for eyesight

augmentation 6

Field of view angle 7

Measuring range of azimuthal angles 0...360

Time of continuous operation from one set of batteries at the temperature of 20 degrees Celsius 10

Overall dimensions, not more 169x152x73 mm

Eyepiece diopter adjustment -3...3

Elevation angle measuring range -35...35

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
