Bimetallic Thermometer TBf-222 for Liquid and Gas Temperature Measurement

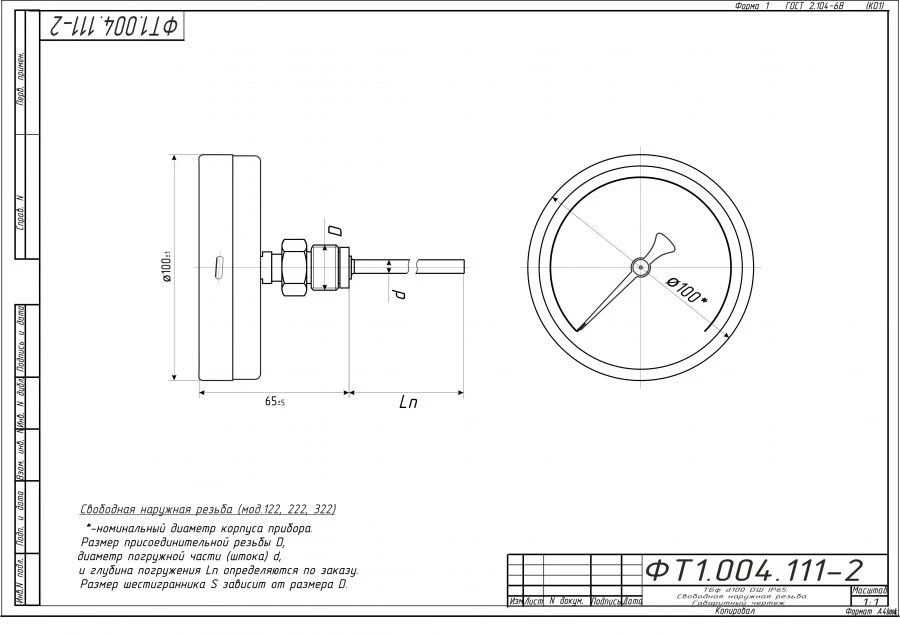

Thermometers bimetallic TBf are designed to measure the temperature of liquid and gaseous media, not aggressive to the material of protective sleeves or thermoballoon (in the absence of a protective sleeve), as well as the temperature of bulk and solids. The thermometers are manufactured with axial (Axial) location of the thermoballoon relative to the body. The thermometers can have a zero corrector located on the end of the thermoballoon or the body.

The design of the connection is free external thread. Thermometers can be referred to explosion-protected equipment of group II according to GOST 31441.1-2011 (EN 13463-1:2001), GOST 30852.0-2002 (IEC 6079-0:1998) and are intended for use in places (except underground mine workings and their above-ground structures), hazardous by explosive gas environments in accordance with the assigned explosion protection marking.
