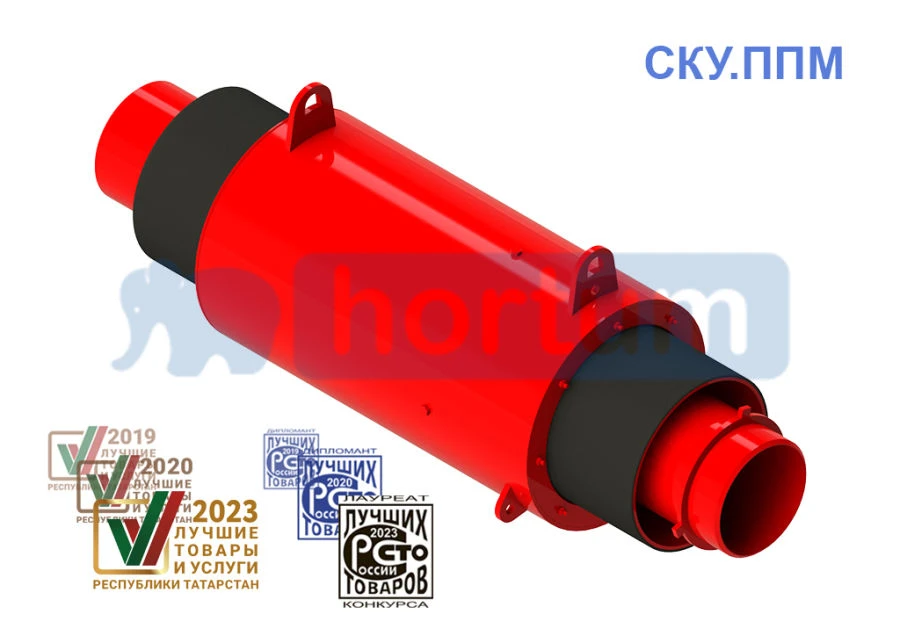

Bellows Compensating Device with Thermal and Hydro Insulation for PPM Applications

Silphon compensating device with thermally and hydraulically insulated bellows and sleeve in polyethylene sheath under PPM insulation is equipped with thermally and hydraulically insulated multilayer stainless steel bellows, welding sockets without factory insulation, polyethylene sheathed sleeve under RPM insulation, gland packing for waterproofing, protective cover, guides to prevent torsional rotations and washer for additional installation of pre-stretching mechanism. The product is provided with lifting and pre-stretching lugs. It is possible to manufacture with additional thermal insulation of the bellows.

Compensators SKU.PPM of hortum trade mark are designed for compensation of axial displacements of temperature deformations of rectilinear sections of heating mains with different types of laying. They can be used both for underground (ductless) and aboveground laying. Guarantee 10 years.

Availability of GOST R certificate of conformity, TR CU certificate and EAEC declaration.
