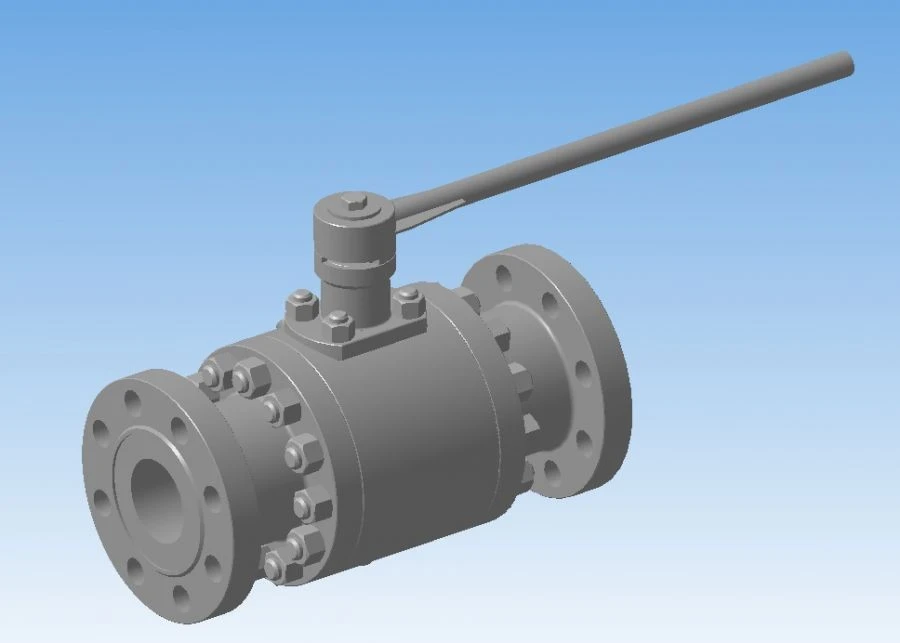

Ball Valves DN10-100 mm for pressures PN1.6-16.0 MPa

Ball Valves DN10-100 mm for pressures PN1.6-16.0 MPa

Brand: UZPA

$90 - $1,800 USD

MOQ: 5 pieces

Key Features

Nominal diameter DN: 10 mm 15 mm 20 mm 25 mm 32 mm 40 mm 40 mm 50 mm 65 mm 80 mm 100 mm mm

Nominal pressure PN: 1.6 MPa 2.5 MPa 4 MPa 6.3 MPa 10 MPa 16 MPa thous. t storage

Material of manufacture: carbon steel (steel 20; 25l, etc.); low-alloy steel (09g2s; 20gl, etc.); high-alloy stainless steel (12x18n9t; 12x18n10t; 12x18n9tl, etc.); high-alloy stainless steel with molybdenum content (10x17n13m3t, etc.); sta

Housing type: Collapsible; all-welded

Supplier Information

UZPA LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from UZPA

Steel Wedge Gate Valve DN 15-1000 mm PN 1.6-35.0 MPa

$90-$6,000

Check Valve DN 10-1000 mm PN 1.6-40.0 MPa

$90-$6,000

Industrial Ball Valves DN 10-1200 mm PN 0.6-50.0 MPa

$30-$6,000

Gas and Pressure Take-off Stands DN50-100 mm PN1.6-16.0 MPa

$900-$3,600

Description

Ball valves DN10-100 mm for pressures nominal PN1.6-16.0 MPa inclusive of all versions, intended for delivery to organisations belonging to PJSC Transneft. The valves are designed for hermetic shut-off of the working medium flow in pipelines at the facilities of trunk pipelines.

They are manufactured for aboveground installation in the open air without protective structures against atmospheric influences. They provide the possibility of two-way direction of working medium flow.

Specifications

Nominal diameter DN

10 mm 15 mm 20 mm 25 mm 32 mm 40 mm 40 mm 50 mm 65 mm 80 mm 100 mm mm

Nominal pressure PN

1.6 MPa 2.5 MPa 4 MPa 6.3 MPa 10 MPa 16 MPa thous. t storage

Material of manufacture

carbon steel (steel 20; 25l, etc.); low-alloy steel (09g2s; 20gl, etc.); high-alloy stainless steel (12x18n9t; 12x18n10t; 12x18n9tl, etc.); high-alloy stainless steel with molybdenum content (10x17n13m3t, etc.); sta

Housing type

Collapsible; all-welded

Pipeline connection type

flanged; coupling; socket; socket-nipple; welded to pipeline; combined

Actuator (control type)

manual (handle or gearbox); electric

Valve body flow type

full bore

Direction of medium flow

any

Type of climatic version according to GOST 15150

temperate climate (u1) cold climate (hl1) temperate and cold climate (uhl1)

Installation

above ground
