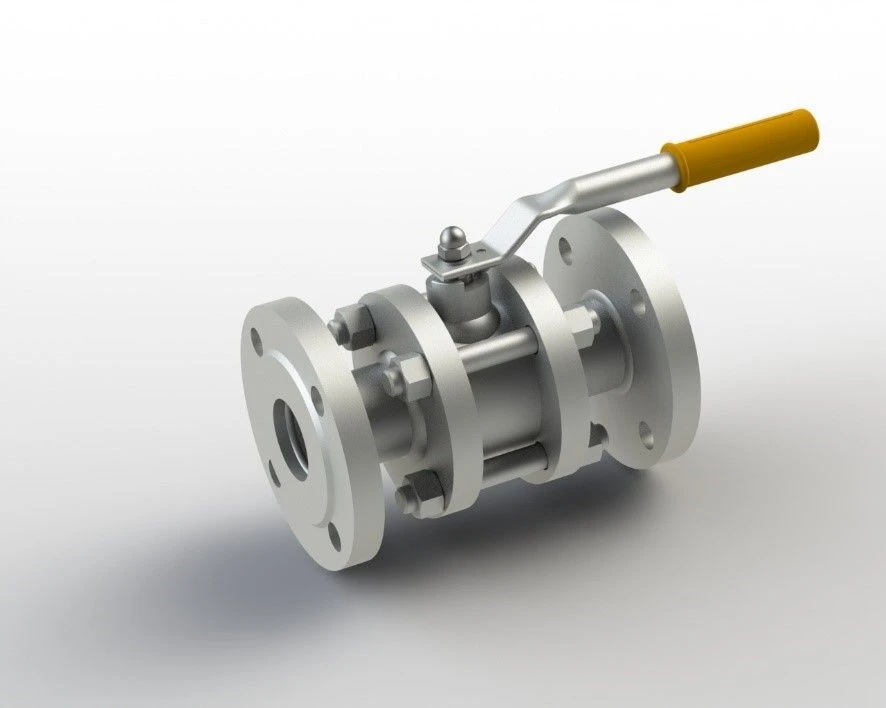

Ball Valves DN 10-1200 mm, PN 0.6-50.0 MPa, Disassembled and Welded Models

Available for Import

Ball Valves DN 10-1200 mm for Reliable High Pressure Control

Ball Valves

Manufacturer: UZPA LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Shut-off ball valves with nominal diameter DN 10-1200 mm, nominal pressure PN 0.6-50.0 MPa, collapsible and all-welded. They meet the technical requirements of Rosneft Oil Company. They are intended for installation as shut-off devices on process pipelines and process equipment of oil and gas processing, oil production, petrochemical, gas industries; steam and hot water pipelines, in heat networks; in gas supply and fire-fighting systems.

Specifications

Nominal diameter DN

10 mm 15 mm 20 mm 25 mm 32 mm 40 mm 50 mm 65 mm 80 mm 100 mm 125 mm 150 mm 200 mm 250 mm 300 mm 350 mm 400 mm 450 mm 500 mm 600 mm 700 mm 800 mm 900 mm 1000 mm 1200 mm mm

Nominal pressure PN

0.6 MPa 1.6 MPa 2.5 MPa 4 MPa 6.3 MPa 10 MPa 16 MPa 25 MPa 32 MPa 40 MPa 50 MPa MPa

Material of manufacture

carbon steel (steel 20; 25l, etc.); low-alloy steel (09g2s; 20gl, etc.); high-alloy stainless steel (12x18n9t; 12x18n10t; 12x18n9tl, etc.); high-alloy stainless steel with molybdenum content (10x17n13m3t, etc.); sta

Housing type

Collapsible; all-welded

Pipeline connection type

flanged; coupling; socket; socket-nipple; under welding to pipeline; combined; interflanged.

Actuator (control type)

manual (handle or gearbox); electric

Valve body flow type

full bore; part bore

Direction of medium flow

any

Type of climatic version according to GOST 15150

temperate climate (u1) cold climate (hl1) temperate and cold climate (uhl1)

Installation

above ground; underground

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
