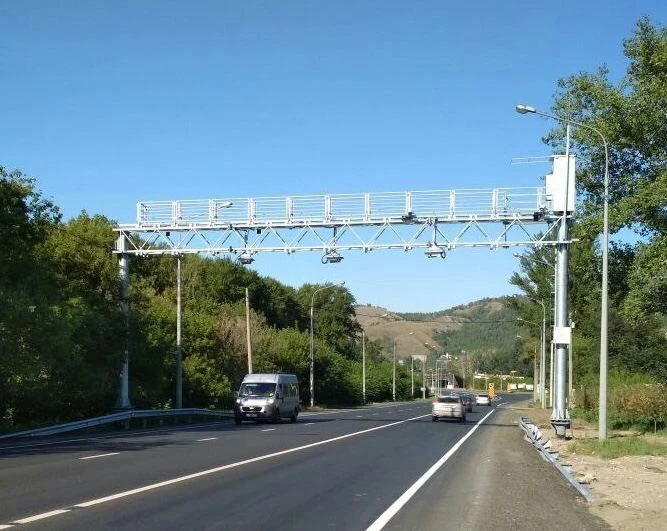

Automatic Weight and Dimension Control Complex "Bizman 7" Model Bizman 7/T-3-V

Available for Import

Automatic Weight and Dimension Control Complex "Bizman 7" for Efficient Vehicle Measurement

Measurement and Control Devices

Manufacturer: Kazan-Telematika LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Bizman 7 complexes are special technical means operating in automatic mode and having the functions of measuring weight and dimensional parameters of the vehicle, as well as photo and video recording functions to ensure the fixation of administrative offences. The complex has a modular architecture and consists of a set of weight-measuring (force-receiving) modules; a module for measuring overall dimensions; a module for photo-video fixation and recognition of GRZ with a GLONASS/GPS receiver; a processing and control module; a telecommunication cabinet with electronic equipment; a data transmission device and special software. The complexes can be additionally equipped with vehicle detection indicators (induction loops) and modules for determining the number of wheels (gimbals) on the vehicle axle. Modification of complexes Bizman 7/T-3-V includes a set of strain-resistor weight-measuring modules, complex of photofixation "BIV 7" and is intended for installation on 3 lanes of transport movement.

Specifications

Highest measuring limit of the center-to-center distances of the vehicle

32 m

Limits of permissible absolute error of TC center-to-center distances measurements

0.03 m

Tolerance limit of vehicle speed measurement error

Limits of allowable absolute error of synchronization of the internal time scale of the complex with the national UTC time scale

Boundaries of allowable absolute error (at probability level 0.95 and geometric factor PDOP?3) of coordinates determination of k

5 m

Highest measured vehicle speed

350

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Smallest measuring limit for axial loads of the TCs

1500 kg

Maximum measuring limit for axial loads of the TCs

20000 kg

Tolerance limit of relative error of measurements of load per axle of the vehicle, load per axle in the group of axles of the ve

10 %

Smallest measuring limit of the TC length

3 m

The smallest limit of measurement of total mass and load from a group of vehicle axles (N - number of vehicle axles or number of

1500xN kg

The highest limit of measurement of total mass and load from a group of vehicle axles (N - number of vehicle axles or number of

20000xN kg

Tolerance limit of relative error of total mass measurements

5 %

Highest measurement limit of the TC length

30 m

Smallest measurement limit for width and height of the vehicle

1 m

Highest measurement limit for width and height of the vehicle

5 m

Limits of permissible absolute error of TC length measurements

0.6 m

Tolerance limits of absolute error of TC width measurements

0.1 m

Limits of permissible absolute error of TC height measurements

0.01 m

Lowest speed of the vehicle when measuring gross weight, axle load, axle group load, axle load in the axle group of the vehicle

Highest speed of the vehicle when measuring gross weight, axle load, axle group load, axle load in the axle group of the vehicle

140

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
