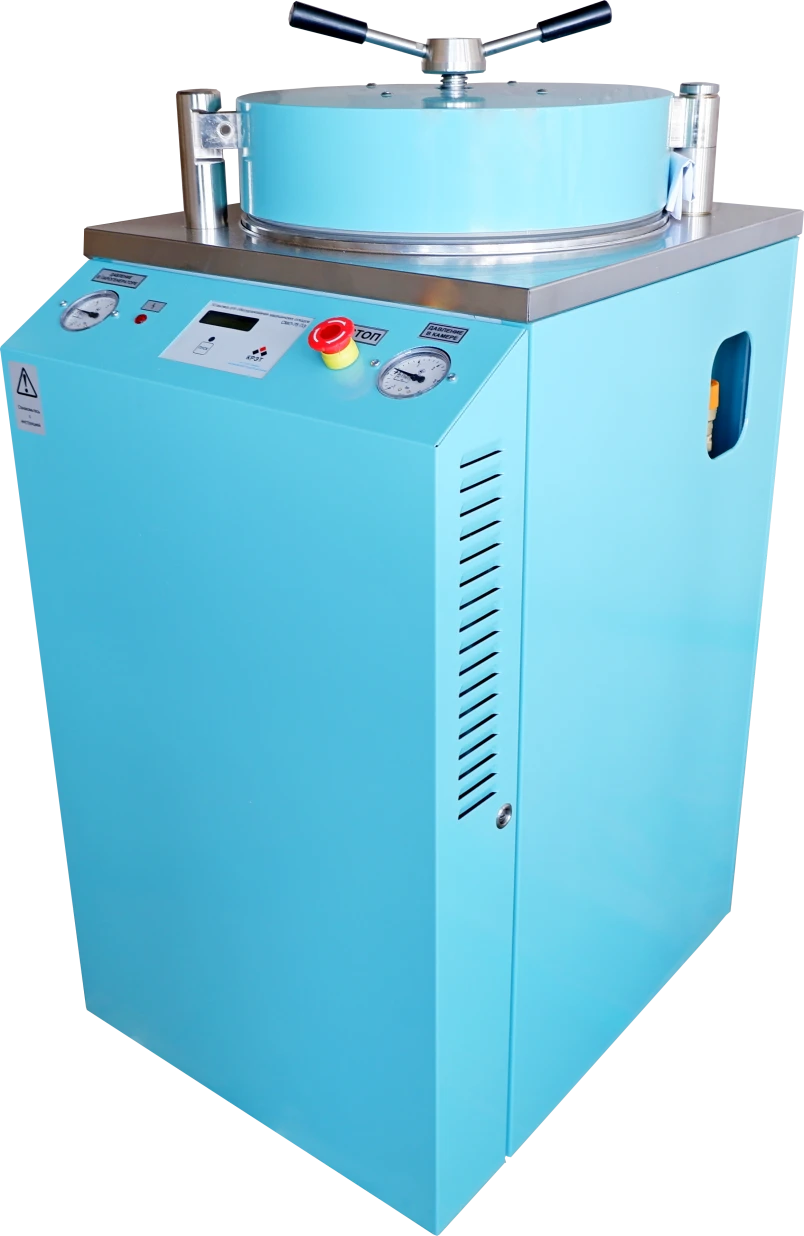

Automatic Steam Sterilizer for Medicinal Solutions VK-75-R-PZ - Ensuring Quality Control

Designated: For sterilisation by water saturated steam of medicinal solutions in accordance with the order of the Ministry of Health of the Russian Federation? 214 from 16.07.97 "On quality control of medicines manufactured in pharmacy organisations (pharmacies), hermetically sealed and not sealed in glass containers up to 1000 ml" Useful volume of the chamber, l 75 Power, kW, not more than 6,5 Weight, kg, not more than 130±13 Overall dimensions, (WxHxH), mm 540x686x1210 (±15) Internal dimensions, (ØxHxH), mm 400?674 (±3) Set temperature modes 121°C - 8 min. 121°C - 12 min.

121°C - 20 min. Free programming mode 110-126°C/5-45 min. Volume of distilled water poured in at the first start of the steriliser, l 35 Time of steriliser heating, not more, min.

45 Accuracy of temperature maintenance, °? ±1 Maximum working pressure, mPa 0,11 Pressure maintenance accuracy, mPa ±0,01 MTBF, cycles 1000 Continuous operation time per day, h, not more than 16 Number of sterilisation boxes.
