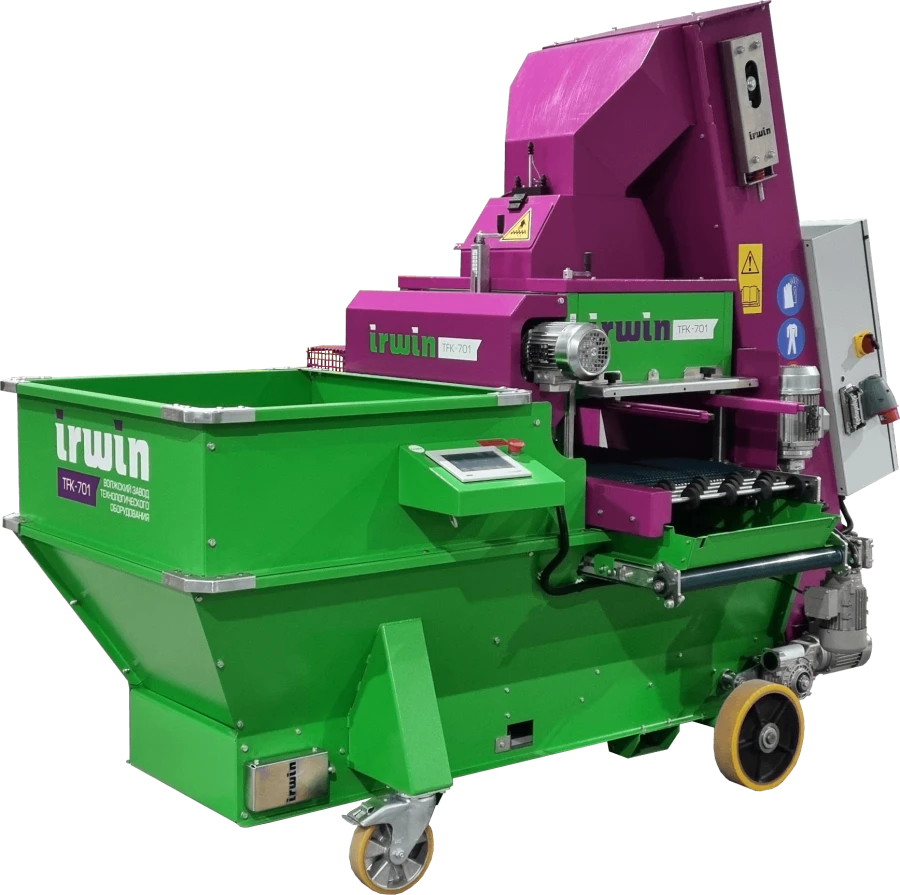

Automatic Peat Filling Machine for Cassette and Containers - IRWIN TFK-701

Automatic peat-filling machine is designed for filling cassettes and containers P8/P9-C2 installed in frames with substrate. Advantages of the TFK-701 peat filling machine: Two-level system of filling density adjustment. Adjustable capacity.

Cassette accounting system, daily and operational counters. Works with cassettes of any type (injection moulded, thermoformed, foam). Fills mini-containers (including P8/P9- C2).

After cleaning the cassettes, excess substrate is returned to the hopper and reused. Technical characteristics:Hopper capacity 0.6 m3 Maximum dimensions of cassettes D x W x H, mm750h400h200 Capacity, cassettes to 700 per hour Capacity, container P8 / P9 to 18 000 per hour Weight850 kg Dimensions D x W x H, mm 2550 2100 2200 Nominal voltage, three-phase 380 V Total power of drives 3.9 kW Current frequency, Hz50.
